Bel Fuse provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
To avoid cold solder joints, ensure the PCB is clean and free of oxidation. Use a soldering iron with a temperature range of 250°C to 270°C, and apply a small amount of solder paste or flux. Hold the iron at a 20-30° angle, and solder the fuse leads for 2-3 seconds. Inspect the joints under a microscope or with a magnifying glass to ensure a smooth, shiny finish.
The response time of the SS-74401-001 fuse is typically in the range of 1-10 milliseconds, depending on the magnitude of the overcurrent. This is relatively fast compared to other fuse technologies, making it suitable for applications requiring rapid overcurrent protection.
The SS-74401-001 fuse is rated for operation up to 125°C. However, it's essential to derate the fuse's current rating according to the ambient temperature. Bel Fuse provides derating curves in their datasheet or application notes. As a general rule, the current rating decreases by 1-2% per degree Celsius above 85°C.
To select the correct fuse value, consider the maximum expected current, inrush current, and fault current in your application. Fast blow fuses (like the SS-74401-001) are suitable for applications requiring rapid overcurrent protection, while slow blow fuses are better suited for applications with high inrush currents or where a brief overcurrent is acceptable. Consult Bel Fuse's application notes and selection guides for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SS-74401-001 Overview

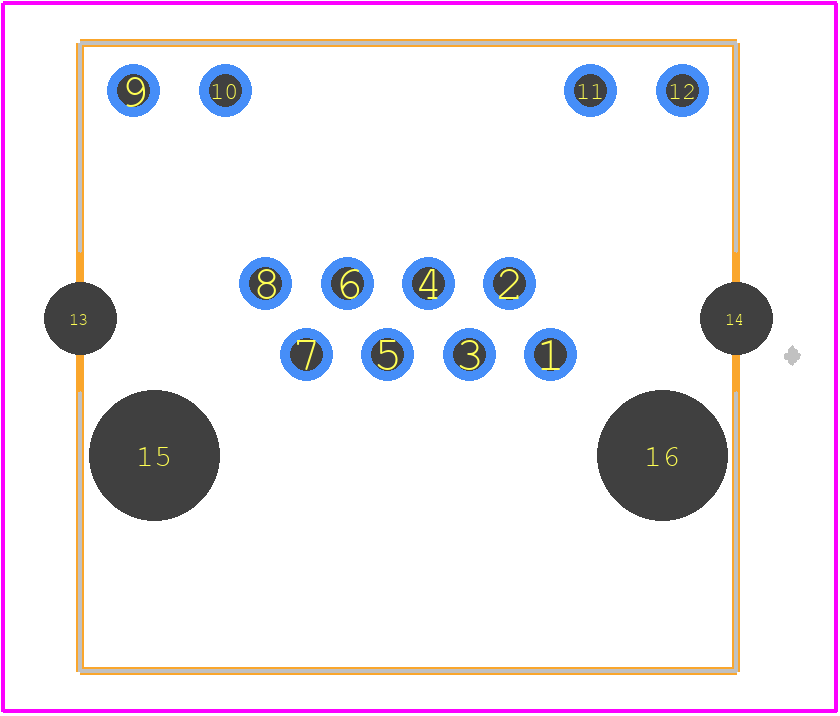

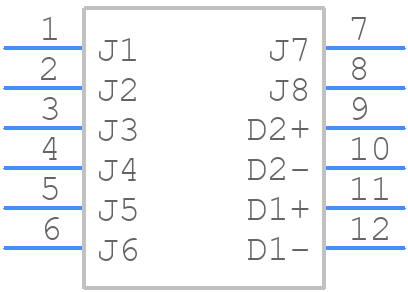

Use the download button to access the SS-74401-001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SS-74,
or try a keyword search, such as Telecom and Datacom Connectors
