Bel Fuse recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.
Bel Fuse recommends following the IPC J-STD-001 standard for soldering and assembly. The component should be handled with care to prevent damage to the pins or package. A soldering temperature of 260°C (max) and a soldering time of 3 seconds (max) are recommended.
The component should be stored in a dry, clean environment with a temperature range of -40°C to 125°C and humidity < 60%. It should be protected from direct sunlight, moisture, and physical damage.
Bel Fuse recommends performing visual inspection, solderability testing, and electrical testing according to the relevant industry standards (e.g., IPC-A-610, IPC-J-STD-001). Additionally, the component should be tested for electrical performance, including voltage and current ratings, before installation.
The expected lifespan of the SS-7488SC5-YG-PG4-BA is typically 10-15 years, depending on the operating conditions and environmental factors. Bel Fuse provides a reliability rating of 0.01% per 1000 hours at 40°C, which is in line with industry standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SS-7488SC5-YG-PG4-BA Overview

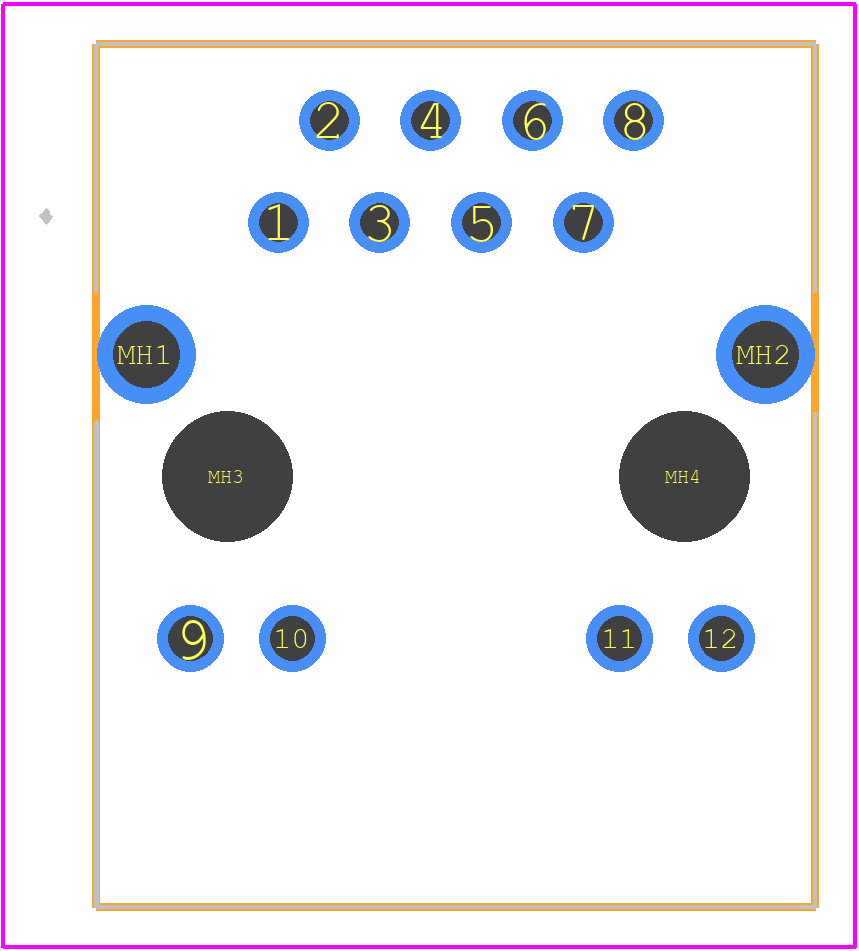

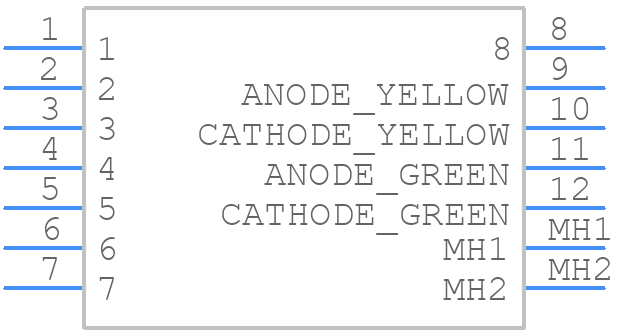

Use the download button to access the SS-7488SC5-YG-PG4-BA schematic symbol, PCB footprint, and 3D model.
