- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SS22SDH2LE
- Part Number SS22SDH2LE
- Manufacturer NKK Switches
- Pin Count 8
- Part Category Switch
- Package Category Other
- Footprint Name Other - SS22SDH2LE-1
- Released Date Feb 18, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SS22SDH2LE Details
-
Manufacturer Part Number:
SS22SDH2LE
-
Brand Name:
NKK Switches
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
NKK Switches
-
YTEOL:
0
-
Switch Type:
SLIDE SWITCH
Trust Checks
Expert Contribution
System Verified
Community Approved
SS22SDH2LE Overview

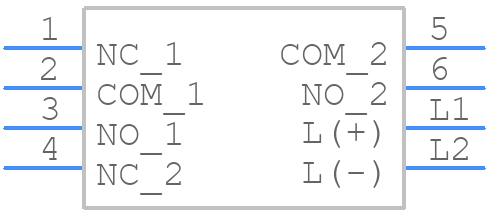

Use the download button to access the SS22SDH2LE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SS22S,
or try a keyword search, such as Slide Switches
