Bel Fuse recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.
Bel Fuse recommends following the recommended soldering profile and using a solder with a melting point above 217°C. Avoid applying excessive force or bending the leads during assembly. Use a soldering iron with a temperature control and a flux that is compatible with the device's packaging.
Operating the SS66800-017F beyond the recommended temperature range can lead to reduced performance, decreased reliability, and potentially even device failure. It's essential to ensure that the device operates within the specified temperature range to maintain its performance and longevity.
Bel Fuse recommends following a systematic troubleshooting approach, starting with visual inspection, then checking the input and output voltages, and finally performing functional tests. Consult the datasheet and application notes for specific guidance on troubleshooting and diagnosis.
Yes, the SS66800-017F is designed to meet certain EMI/EMC standards, but it's essential to follow proper PCB layout and design practices to minimize EMI/EMC issues. Use shielding, filtering, and grounding techniques as necessary to ensure compliance with relevant standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SS66800-017F Overview

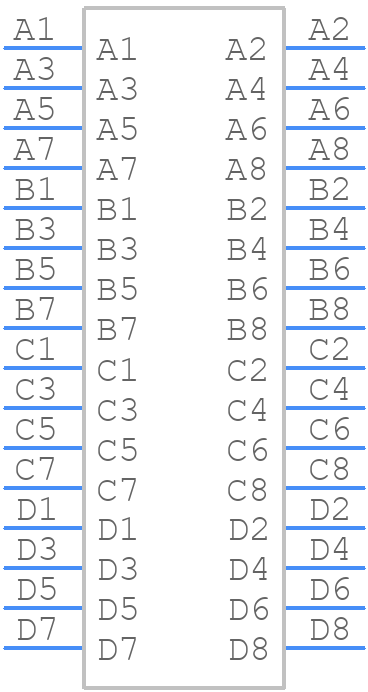

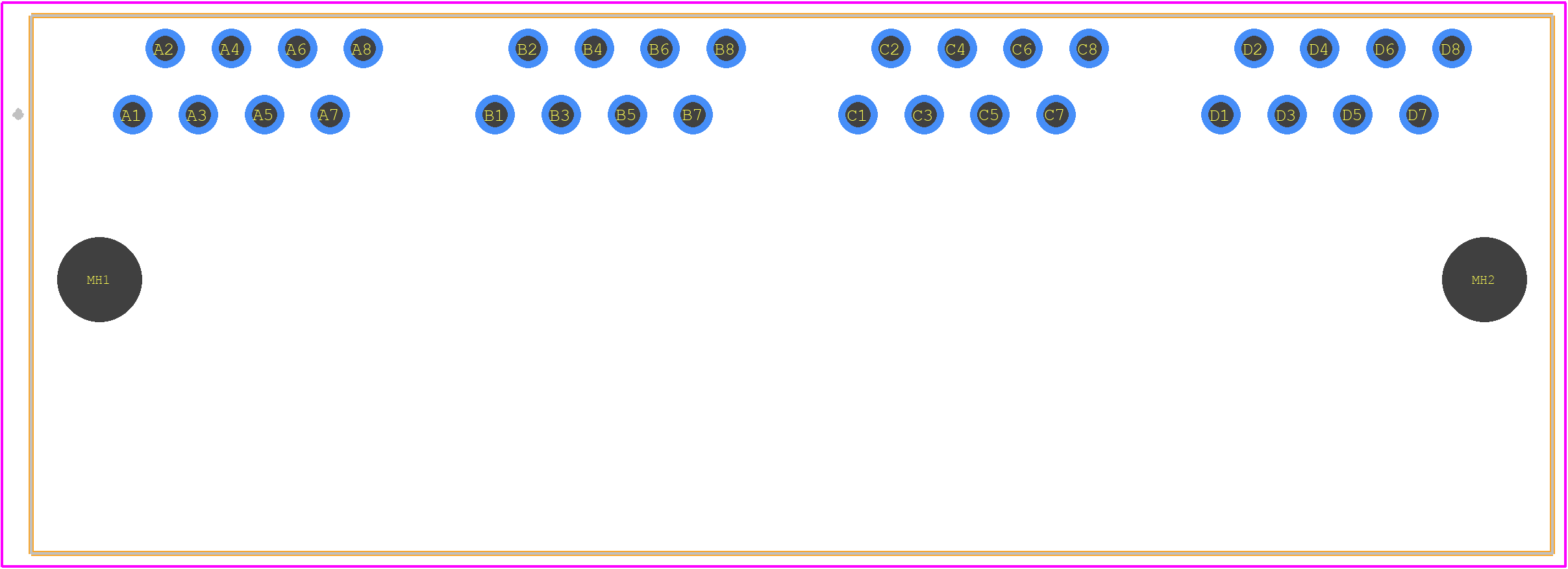

Use the download button to access the SS66800-017F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SS668,
or try a keyword search, such as Telecom and Datacom Connectors
