SS71800-027F - BelFuse

Description: STEWART CONNECTOR - SS71800-027F - CONN, RJ45, JACK, CAT5/5E, 8P8C, THT

Download SS71800-027F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SS71800-027F - BelFuse - PCB symbol
click to zoom
PCB Footprints

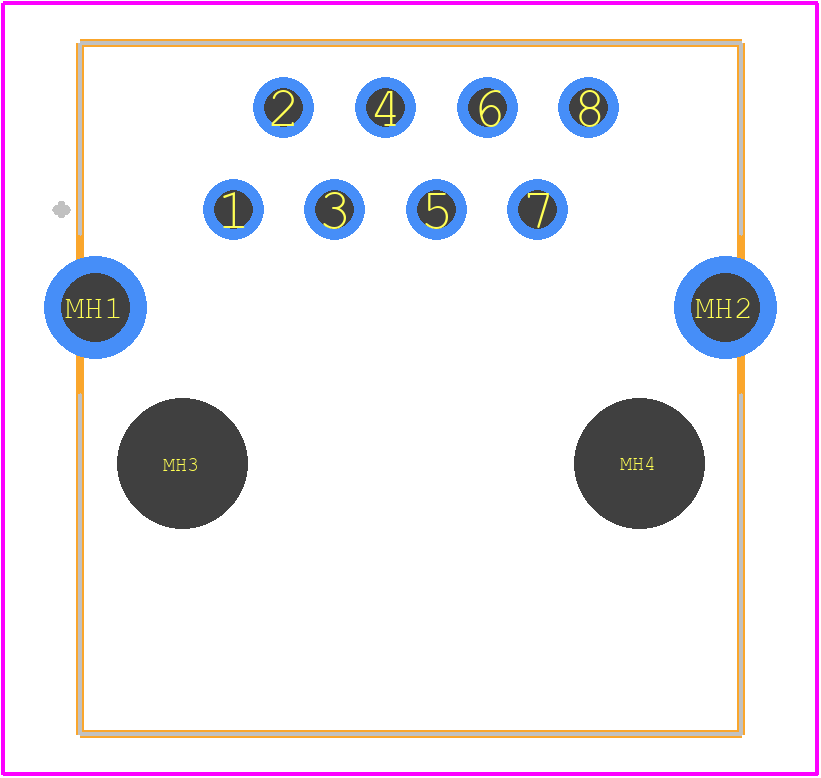

SS71800-027F - BelFuse PCB footprint - Other - Other - SS71800-027F-1
click to zoom
3D Models
SS71800-027F - BelFuse - 3D model - Other - SS71800-027F-1
click to zoom

SS71800-027F Details

  • Manufacturer Part Number:

    SS71800-027F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Bel Fuse

  • YTEOL:

    8

  • Additional Feature:

    SHIELDED

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.65 inch

  • Body Depth:

    0.68 inch

  • Body Length:

    0.68 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL/TIN

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

SS71800-027F Frequently Asked Questions (FAQs)

  • Bel Fuse provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
  • The SS71800-027F is designed to handle inrush currents and high surge currents. However, the exact response depends on the specific application and circuit conditions. It's recommended to consult with Bel Fuse's technical support or application engineers for guidance on specific use cases.
  • The SS71800-027F is designed to respond quickly to fault conditions, such as overvoltage or overcurrent, to protect the circuit. The exact behavior depends on the specific fault condition and circuit design. Bel Fuse provides detailed information on fault response in their application notes or technical support.
  • The SS71800-027F is rated for operation up to 125°C. However, derating factors apply for high-temperature environments. Consult Bel Fuse's datasheet or application notes for specific derating factors and guidelines for high-temperature operation.
  • Bel Fuse provides guidelines for storage and handling in their datasheet or packaging information. It's essential to follow these guidelines to prevent damage or degradation of the fuse during storage or transportation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SS71800-027F Overview

Use the download button to access the SS71800-027F schematic symbol, PCB footprint, and 3D model.
