Samtec provides a recommended PCB layout and land pattern in their Application Notes document (AN-105) which can be found on their website. It's essential to follow these guidelines to ensure proper mating and to prevent damage to the connector.
While the SSA-116-S-G connector is designed to be rugged, it's essential to consider the specific environmental requirements of your application. Samtec recommends consulting their Environmental Performance document (EN-101) to determine the connector's suitability for your specific use case.
To ensure proper mating and unmating, follow Samtec's recommended mating and unmating procedures outlined in their Handling and Mating Guidelines document (HM-101). This includes using the correct mating sequence, applying the recommended force, and avoiding excessive torque or twisting.
The SSA-116-S-G connector is rated for operation in temperatures ranging from -55°C to +125°C. However, it's essential to consider the specific temperature requirements of your application and ensure that the connector is suitable for the operating environment.
The SSA-116-S-G connector is designed to meet the requirements of IPC-J-STD-001, which includes exposure to humidity and moisture. However, it's essential to consider the specific environmental requirements of your application and ensure that the connector is suitable for the operating environment. Samtec recommends consulting their Environmental Performance document (EN-101) for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SSA-116-S-G Overview

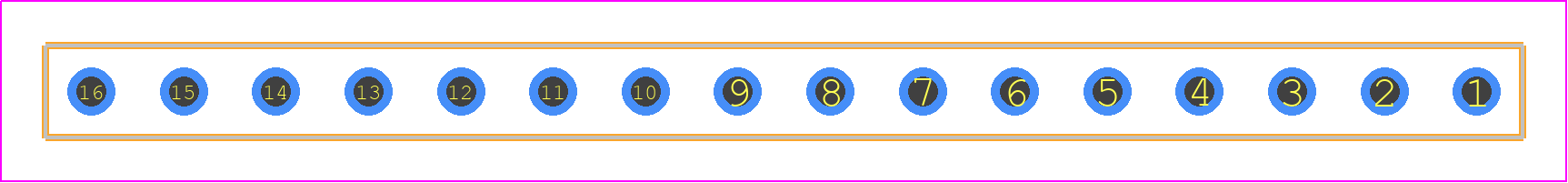

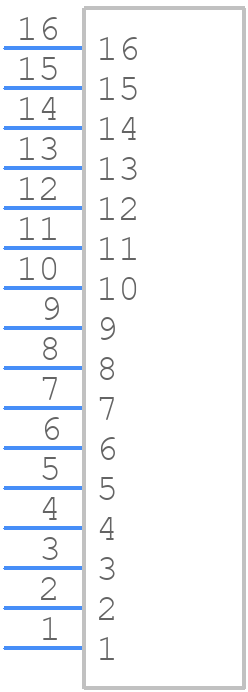

Use the download button to access the SSA-116-S-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSA-1,
or try a keyword search, such as Headers and Edge Type Connectors
