Part Image

SSA-117-W-T - SAMTEC

Description: Conn Socket Strip SKT 17 POS 2.54mm Solder ST Thru-Hole Bulk

Download SSA-117-W-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

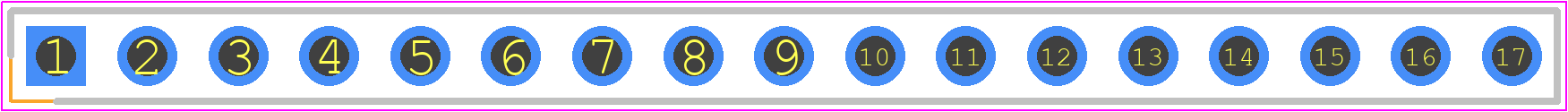

SSA-117-W-T - SAMTEC PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - SSA-117-W-T-
click to zoom
3D Models
SSA-117-W-T - SAMTEC  - 3D model - Header, Receptacle - Straight PTH Box - SSA-117-W-T-
click to zoom

SSA-117-W-T Details

  • Manufacturer Part Number:

    SSA-117-W-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks

  • Manufacturer:

    Samtec Inc

  • Risk Rank:

    2.31

  • YTEOL:

    9.1

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.23 inch

  • Body Length:

    1.7 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    MATTE TIN OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    2.78 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Reference Standard:

    UL

  • Terminal Length:

    0.656 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    WIRE WRAP

  • Total Number of Contacts:

    17

  • UL Flammability Code:

    94V-0

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSA-117-W-T Overview

Use the download button to access the SSA-117-W-T schematic symbol, PCB footprint, and 3D model.
