Samtec provides a recommended PCB layout and land pattern in their Application Notes document (AN-105) and also in the Samtec PCB Footprint Library, which can be downloaded from their website.
To ensure reliable mating and unmating, follow Samtec's recommended mating and unmating sequence, and ensure the connectors are properly aligned and seated. Also, apply a gentle, consistent force during mating and unmating, and avoid applying excessive force or twisting the connectors.
The SSA-120-S-G connector has an operating temperature range of -55°C to +125°C, but it's essential to note that the temperature range may vary depending on the specific application and environment. Consult with Samtec's technical support or application notes for more information.
The SSA-120-S-G connector is designed to meet the requirements of various industries, including industrial, automotive, and aerospace. However, for high-vibration or high-shock environments, it's recommended to consult with Samtec's technical support to determine the suitability of the connector for the specific application.
The recommended torque for the SSA-120-S-G connector's screw-down mechanism is 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm). However, it's essential to consult the specific datasheet or application notes for the recommended torque value, as it may vary depending on the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SSA-120-S-G Overview

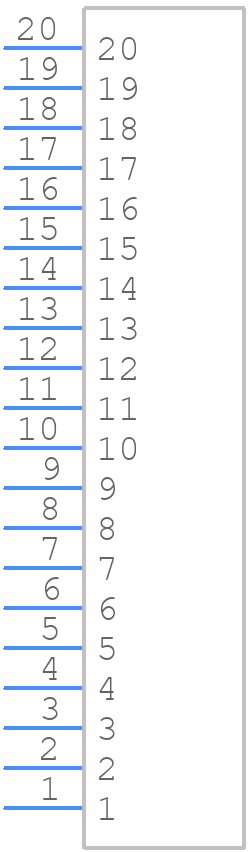

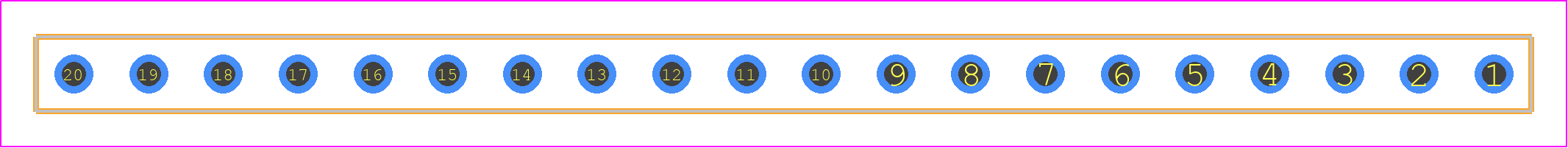

Use the download button to access the SSA-120-S-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSA-1,
or try a keyword search, such as Headers and Edge Type Connectors
