SSA-LXB10GW-GF/LP - Lumex

Description: LUMEX - SSA-LXB10GW-GF/LP. - BAR GRAPH, 10-LED, GREEN, 8MCD, 105mW

Download SSA-LXB10GW-GF/LP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

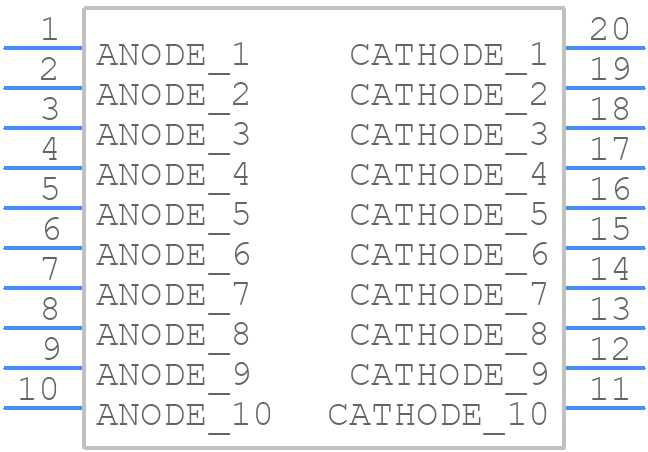

SSA-LXB10GW-GF/LP - Lumex - PCB symbol
click to zoom
PCB Footprints

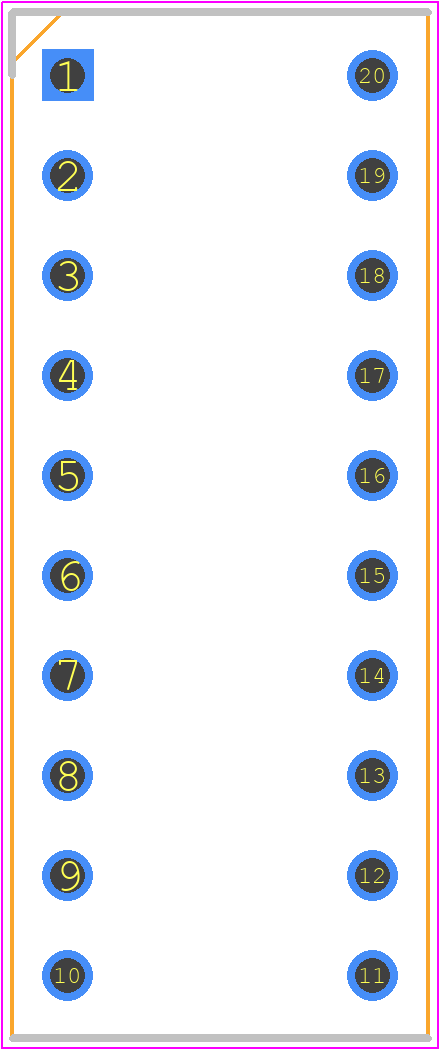

SSA-LXB10GW-GF/LP - Lumex PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SSA-LXB10GW-GF/LP)_11
click to zoom
3D Models
SSA-LXB10GW-GF/LP - Lumex - 3D model - Dual-In-Line Sockets - SSA-LXB10GW-GF/LP)_11
click to zoom

SSA-LXB10GW-GF/LP Details

  • Manufacturer Part Number:

    SSA-LXB10GW-GF/LP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    7

  • Color:

    GREEN

  • Configuration:

    SEPARATE, 10 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • Lens Type:

    DIFFUSED MILKY WHITE

  • Luminous Intensity-Nom:

    8.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    10

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    6.8 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    RECTANGULAR

  • Size:

    5 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    7.62 mm

  • Viewing Angle:

    160 deg

SSA-LXB10GW-GF/LP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SSA-LXB10GW-GF/LP is -40°C to 85°C.
  • Yes, the SSA-LXB10GW-GF/LP is compatible with lead-free soldering processes and meets the RoHS (Restriction of Hazardous Substances) directive.
  • The typical forward voltage drop of the SSA-LXB10GW-GF/LP is around 2.0-2.5V at a forward current of 20mA.
  • Yes, the SSA-LXB10GW-GF/LP is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors such as moisture and UV light.
  • The viewing angle of the SSA-LXB10GW-GF/LP is 120°, making it suitable for applications where a wide viewing angle is required.
