SSA-LXB10HW-GF/LP - Lumex

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Red (x 10) Diffused, White 2.35V 10mA Rectangle with Flat Top 5.00mm x 1.74mm Through Hole

Download SSA-LXB10HW-GF/LP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SSA-LXB10HW-GF/LP model

Email notifications will be applied after download.

Send part feedback

Symbol

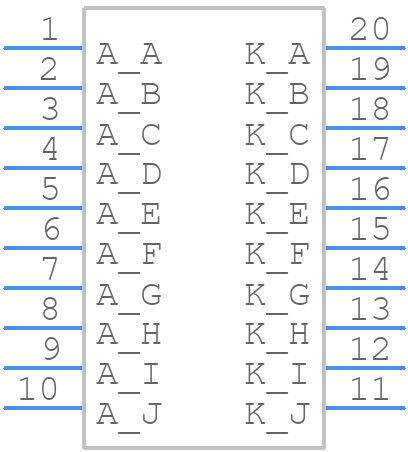

SSA-LXB10HW-GF/LP - Lumex - PCB symbol

PCB Footprints

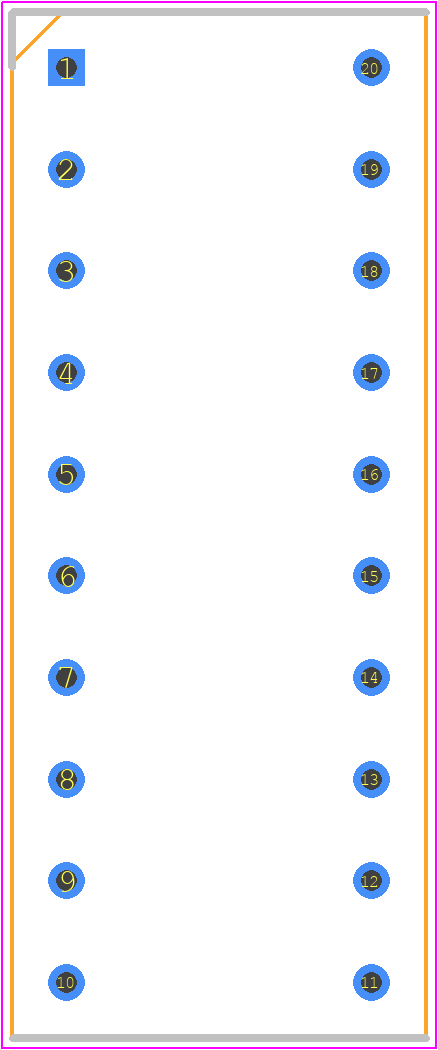

SSA-LXB10HW-GF/LP - Lumex PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 20-Pin DIP

3D Models

SSA-LXB10HW-GF/LP - Lumex - 3D model - Dual-In-Line Sockets - 20-Pin DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSA-LXB10HW-GF/LP
Part Number SSA-LXB10HW-GF/LP
Manufacturer Lumex
Pin Count 20
Part Category LED
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 20-Pin DIP
Released Date Nov 28, 2023
Last Modified Date Jun 30, 2026 4:50 PM UTC
Pinout / Pin List Click Here (Member Only)

SSA-LXB10HW-GF/LP Details

Manufacturer Part Number:
SSA-LXB10HW-GF/LP
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.20.00
Manufacturer:
ITW Lumex
YTEOL:
6
Color:
RED
Configuration:
SEPARATE, 10 ELEMENTS
Forward Current-Max:
0.03 A
Lens Type:
DIFFUSED MILKY WHITE
Luminous Intensity-Nom:
4.0 mcd
Mounting Feature:
RADIAL MOUNT
Number of Functions:
10
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
SINGLE COLOR LED ARRAY
Overall Height:
6.8 mm
Packing Method:
BULK
Peak Wavelength:
700 nm
Shape:
RECTANGULAR
Size:
5 mm
Surface Mount:
NO
Terminal Pitch:
7.62 mm
Viewing Angle:
160 deg

SSA-LXB10HW-GF/LP Frequently Asked Questions (FAQs)

The recommended operating temperature range for the SSA-LXB10HW-GF/LP is -40°C to 85°C.
Yes, the SSA-LXB10HW-GF/LP is compatible with lead-free soldering processes and meets the RoHS (Restriction of Hazardous Substances) directive.
The typical luminous intensity of the SSA-LXB10HW-GF/LP is 10000 mcd (millicandelas) at a viewing angle of 2θ = ±20°.
Yes, the SSA-LXB10HW-GF/LP is suitable for outdoor applications due to its high luminous intensity and IP67 rating, which provides protection against dust and water ingress.
The recommended storage temperature range for the SSA-LXB10HW-GF/LP is -40°C to 100°C.
