SSA-LXB10IGW-CAGF - Lumex

Description: LED Bars and Arrays 10 Seg LED Array 635nm/565nm Blk/Gry

Download SSA-LXB10IGW-CAGF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SSA-LXB10IGW-CAGF model

Email notifications will be applied after download.

Send part feedback

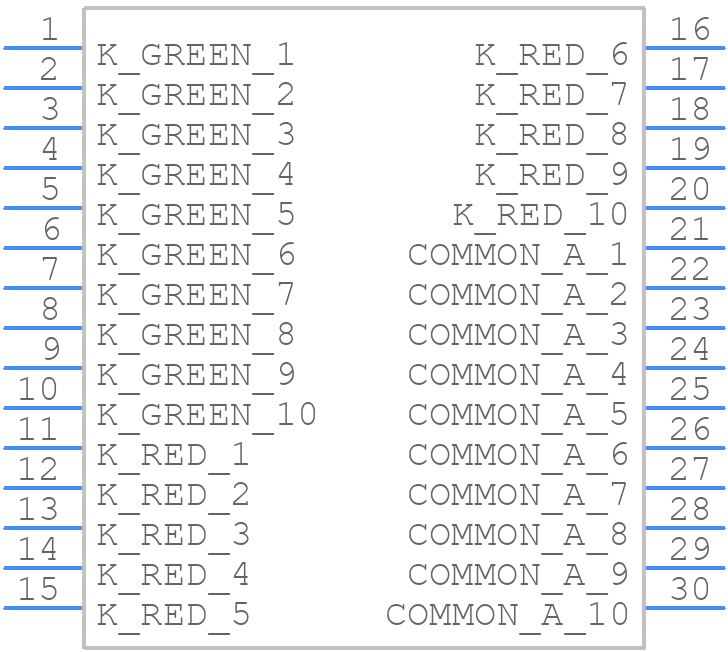

Symbol

SSA-LXB10IGW-CAGF - Lumex - PCB symbol

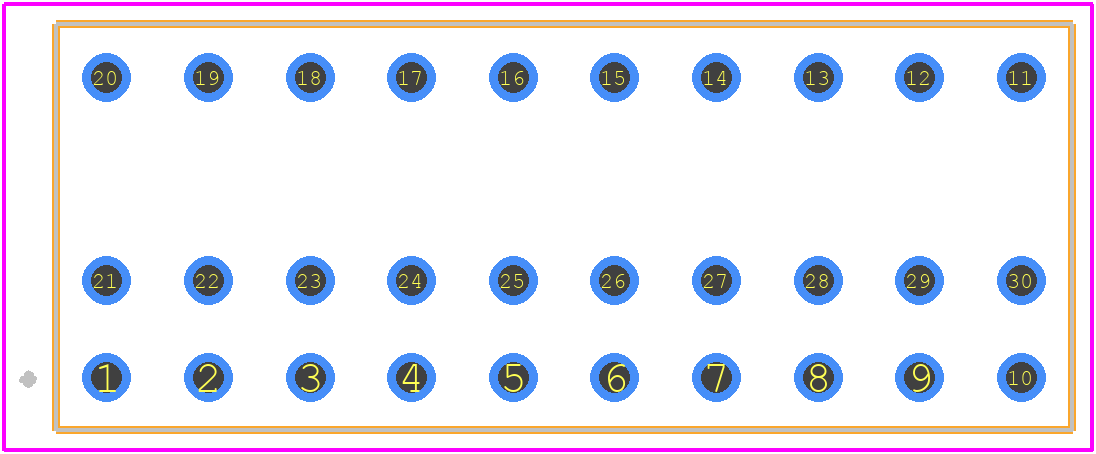

PCB Footprints

SSA-LXB10IGW-CAGF - Lumex PCB footprint - Other - Other - SSA-LXB10IGW-CAGF-6

3D Models

SSA-LXB10IGW-CAGF - Lumex - 3D model - Other - SSA-LXB10IGW-CAGF-6

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSA-LXB10IGW-CAGF
Part Number SSA-LXB10IGW-CAGF
Manufacturer Lumex
Pin Count 30
Part Category Display
Package Category Other
Footprint Name Other - SSA-LXB10IGW-CAGF-6
Released Date Nov 28, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SSA-LXB10IGW-CAGF Details

Manufacturer Part Number:
SSA-LXB10IGW-CAGF
Rohs Code:
Yes
Part Life Cycle Code:
Active Unconfirmed
HTS Code:
8541.40.20.00
Manufacturer:
ITW Lumex
YTEOL:
2
Optoelectronic Device Type:
DUAL COLOR LED ARRAY
