SSA-LXB10IW-GF/LP - Lumex

Description: LUMEX - SSA-LXB10IW-GF/LP. - BAR GRAPH, 10-LED, RED, 8MCD, 105mW

Download SSA-LXB10IW-GF/LP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

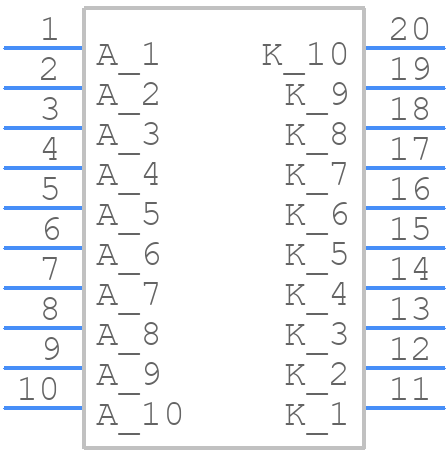

SSA-LXB10IW-GF/LP - Lumex - PCB symbol
click to zoom
PCB Footprints

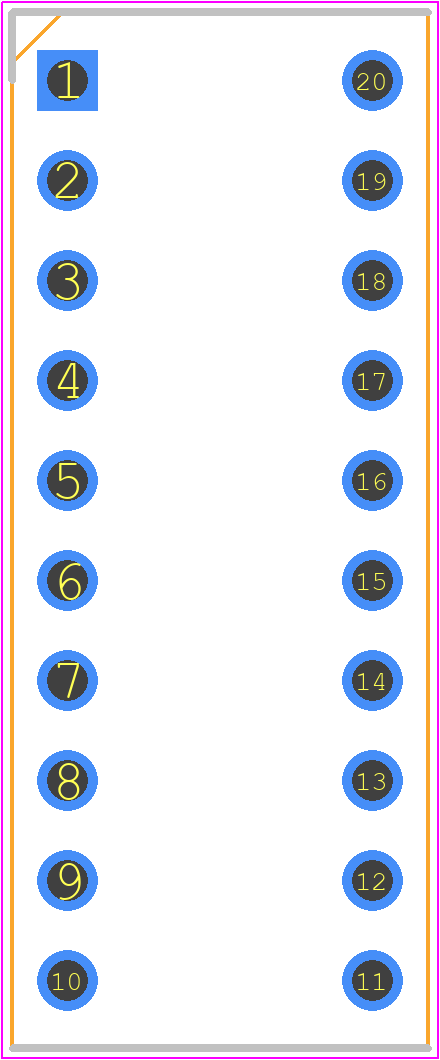

SSA-LXB10IW-GF/LP - Lumex PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SSA-LXB10IW-GF/LP
click to zoom
3D Models
SSA-LXB10IW-GF/LP - Lumex - 3D model - Dual-In-Line Sockets - SSA-LXB10IW-GF/LP
click to zoom

SSA-LXB10IW-GF/LP Details

  • Manufacturer Part Number:

    SSA-LXB10IW-GF/LP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    RED

  • Configuration:

    SEPARATE, 10 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    DIFFUSED MILKY WHITE

  • Luminous Intensity-Nom:

    8.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    10

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    6.8 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    635 nm

  • Shape:

    RECTANGULAR

  • Size:

    5 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    7.62 mm

  • Viewing Angle:

    160 deg

SSA-LXB10IW-GF/LP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SSA-LXB10IW-GF/LP is -40°C to 85°C.
  • To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point above 217°C. Also, make sure the PCB is designed with a suitable thermal pad and solder mask to prevent solder bridging.
  • The typical forward voltage drop for the SSA-LXB10IW-GF/LP is around 3.2V to 3.5V, depending on the operating current.
  • Yes, the SSA-LXB10IW-GF/LP is suitable for outdoor applications due to its high luminous intensity and IP67 rating, which provides protection against dust and water ingress.
  • The SSA-LXB10IW-GF/LP has a marked anode (positive leg) and cathode (negative leg). Ensure the anode is connected to the positive voltage supply and the cathode is connected to the negative voltage supply or ground.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSA-LXB10IW-GF/LP Overview

Use the download button to access the SSA-LXB10IW-GF/LP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSA-L, or try a keyword search, such as Visible LEDs
