SSA-LXB10IW-GF - Lumex

Description: LED Bars and Arrays 10 Segment Display

Download SSA-LXB10IW-GF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SSA-LXB10IW-GF model

Email notifications will be applied after download.

Send part feedback

Symbol

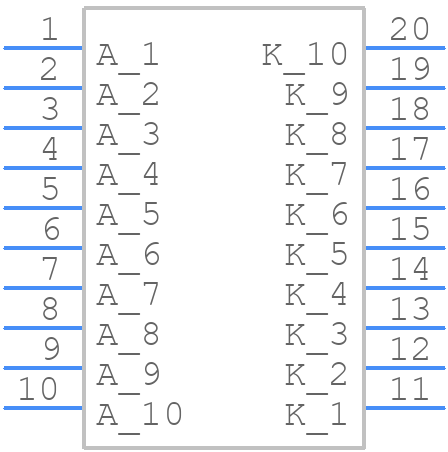

SSA-LXB10IW-GF - Lumex - PCB symbol

PCB Footprints

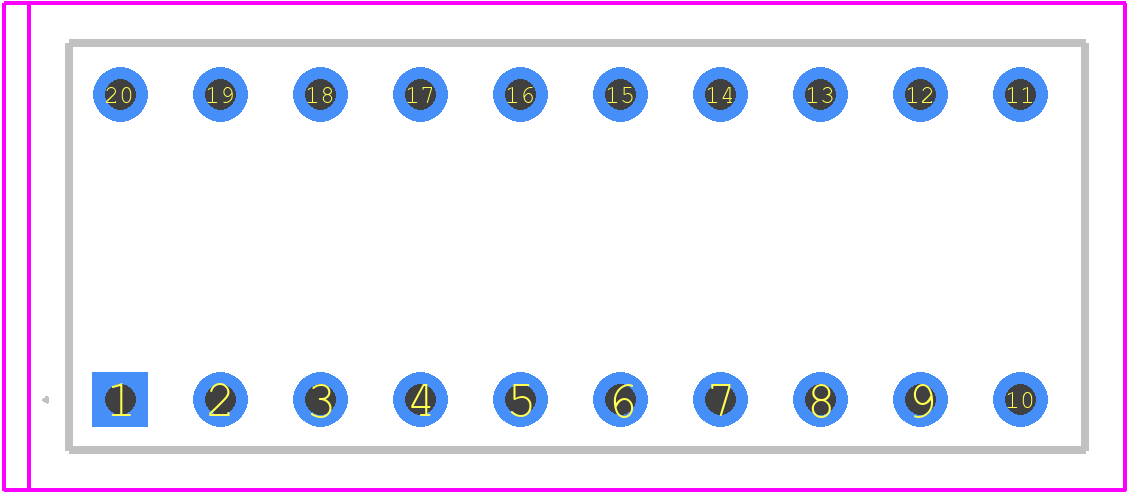

SSA-LXB10IW-GF - Lumex PCB footprint - Other - Other - SSA-LXB10IW-GF-2

3D Models

SSA-LXB10IW-GF - Lumex - 3D model - Other - SSA-LXB10IW-GF-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSA-LXB10IW-GF
Part Number SSA-LXB10IW-GF
Manufacturer Lumex
Pin Count 20
Part Category Display
Package Category Other
Footprint Name Other - SSA-LXB10IW-GF-2
Released Date Aug 2, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SSA-LXB10IW-GF Details

Manufacturer Part Number:
SSA-LXB10IW-GF
Rohs Code:
Yes
Part Life Cycle Code:
Active Unconfirmed
HTS Code:
8541.40.20.00
Manufacturer:
ITW Lumex
YTEOL:
2
Optoelectronic Device Type:
SINGLE COLOR LED ARRAY
