The recommended operating temperature range for the SSA-LXB20G14Y3I3W is -40°C to 85°C, but it's always best to check the specific application and environmental conditions to ensure optimal performance.
To ensure reliable solder joints, follow the recommended soldering profile, use a solder with a melting point below 260°C, and avoid excessive thermal stress or vibration during the assembly process.
The typical forward voltage drop of the SSA-LXB20G14Y3I3W is around 2.0-2.5V, but this can vary depending on the specific application, operating temperature, and current flow.
While the SSA-LXB20G14Y3I3W is designed for indoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV radiation, and extreme temperatures. Consult with ITW Lumex or a qualified engineer for specific guidance.
The maximum allowable current for the SSA-LXB20G14Y3I3W is 30mA, but it's recommended to operate within the specified current range (typically 10-20mA) to ensure optimal performance, efficiency, and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SSA-LXB20G14Y3I3W Overview

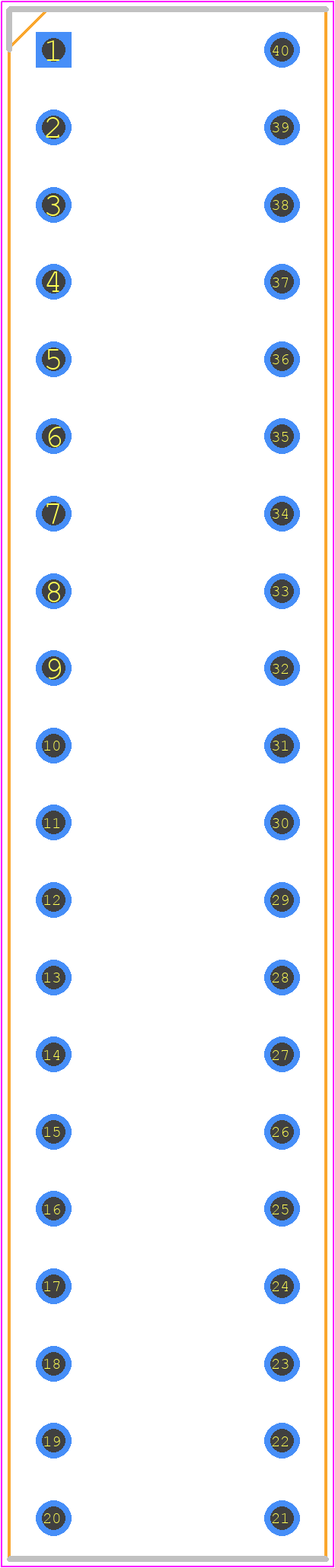

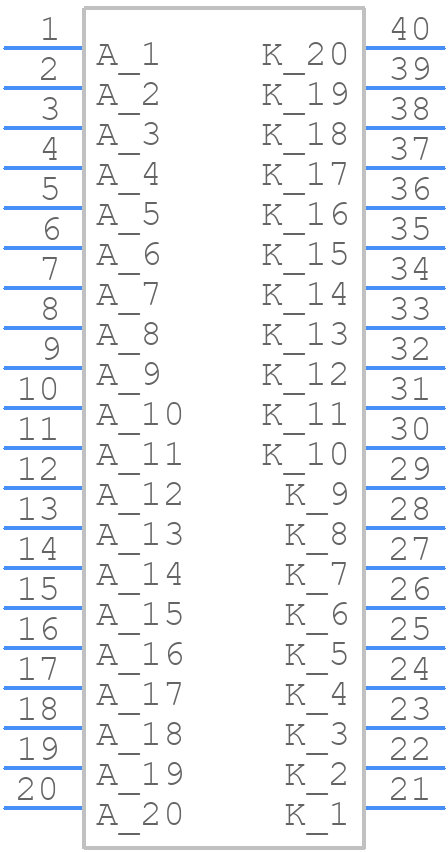

Use the download button to access the SSA-LXB20G14Y3I3W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSA-L,
or try a keyword search, such as Visible LEDs
