SSATA-101-0102-1-2 - Amphenol

Description: Conn SATA RCP 6/7 POS 1mm/1.27mm Solder ST SMD 13 Terminal 1 Port

Download SSATA-101-0102-1-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

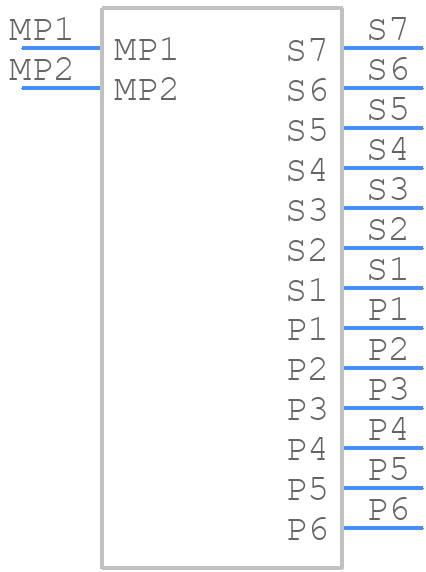

SSATA-101-0102-1-2 - Amphenol - PCB symbol
click to zoom
PCB Footprints
SSATA-101-0102-1-2 - Amphenol PCB footprint - Other - Other - SSATA-101-0102-1-2-1
click to zoom
3D Models
SSATA-101-0102-1-2 - Amphenol - 3D model - Other - SSATA-101-0102-1-2-1
click to zoom

SSATA-101-0102-1-2 Details

  • Manufacturer Part Number:

    SSATA-101-0102-1-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    0

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    SATA CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    YES

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    13

  • UL Flammability Code:

    94V-0

SSATA-101-0102-1-2 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the SSATA-101-0102-1-2 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the SSATA-101-0102-1-2 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373, Category 2, which ensures reliable performance in harsh environments.
  • The maximum cable diameter that can be used with the SSATA-101-0102-1-2 connector is 5.5 mm. This ensures proper strain relief and prevents damage to the connector or cable.
  • Yes, the SSATA-101-0102-1-2 connector is designed to meet the requirements of SATA III standards, supporting data transfer rates up to 6 Gbps.
  • The operating temperature range for the SSATA-101-0102-1-2 connector is -40°C to +85°C. This ensures reliable performance in a wide range of environmental conditions.
