SSB-LX2350SIW - Lumex

Description: LED Bars and Arrays 5x20mm Lght Bar 4 Super High Red Chips

Download SSB-LX2350SIW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

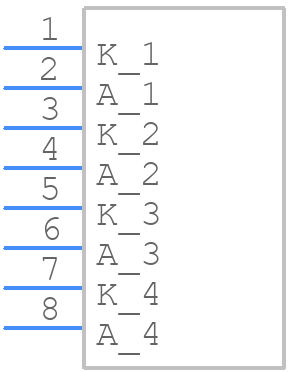

SSB-LX2350SIW - Lumex - PCB symbol
click to zoom
PCB Footprints
SSB-LX2350SIW - Lumex PCB footprint - Other - Other - SSB-LX2350SIW-1
click to zoom
3D Models
SSB-LX2350SIW - Lumex - 3D model - Other - SSB-LX2350SIW-1
click to zoom

SSB-LX2350SIW Details

  • Manufacturer Part Number:

    SSB-LX2350SIW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    SUPER HIGH INTENSITY RED

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    200.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    6.1 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    636 nm

  • Shape:

    RECTANGULAR

  • Size:

    19.05 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    160 deg

SSB-LX2350SIW Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SSB-LX2350SIW is -40°C to 85°C, as specified by ITW Lumex.
  • Handle the SSB-LX2350SIW with care, avoiding direct exposure to moisture, extreme temperatures, and physical stress. Store the device in its original packaging or a similar protective container, away from sources of electrostatic discharge.
  • The typical lead time for delivery of the SSB-LX2350SIW varies depending on the region and availability. Contact ITW Lumex or an authorized distributor for the most up-to-date information.
  • ITW Lumex recommends following the guidelines outlined in the IPC-A-610 standard for conformal coating or potting of the SSB-LX2350SIW. However, consult with ITW Lumex or a qualified engineer for specific requirements based on your application.
  • Yes, the SSB-LX2350SIW is designed to withstand moderate levels of vibration. However, it's essential to follow ITW Lumex's guidelines for mounting and securing the device to ensure reliable operation in high-vibration environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSB-LX2350SIW Overview

Use the download button to access the SSB-LX2350SIW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSB-L, or try a keyword search, such as Visible LEDs
