SSB7FP080202 - TE Connectivity

Description: Dual Barrier, Printed Circuit Pin, Wire-to-Board, 8 Position, 11.1 mm [.438 in] Centerline, 1 Row, Buchanan SSB7, Barrier Strips

Download SSB7FP080202 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SSB7FP080202 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

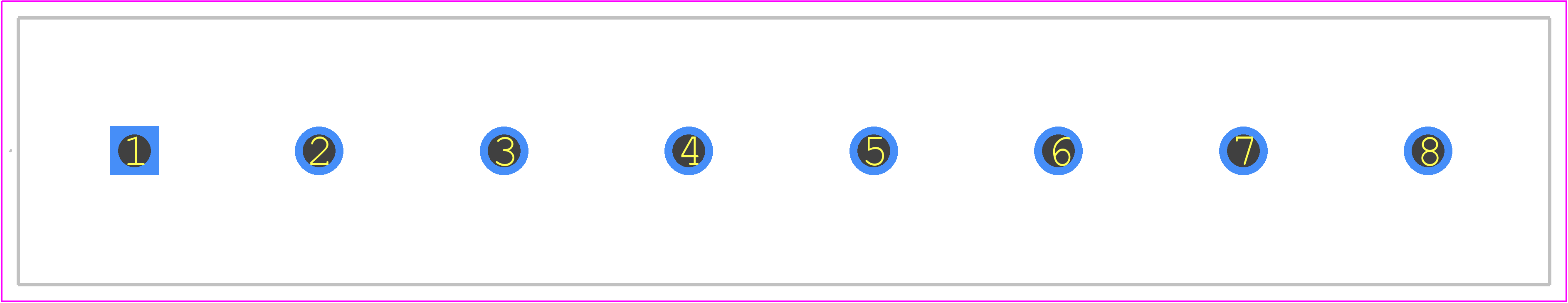

SSB7FP080202 - TE Connectivity PCB footprint - Other - Other - SSB7FP080202-3
click to zoom
3D Models
SSB7FP080202 - TE Connectivity - 3D model - Other - SSB7FP080202-3
click to zoom

SSB7FP080202 Details

  • Manufacturer Part Number:

    SSB7FP080202

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.55

  • Additional Feature:

    94V-2, THERMOPLASTIC

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    20 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

SSB7FP080202 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, the SSB7FP080202 is designed to withstand vibrations up to 10g, making it suitable for use in high-vibration environments, such as in industrial or automotive applications.
  • The SSB7FP080202 has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for outdoor use. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • The maximum operating temperature for the SSB7FP080202 is 125°C, as specified in the datasheet. Exceeding this temperature may affect the connector's performance and reliability.
  • No, the SSB7FP080202 is designed for use with wire gauges 18 AWG to 24 AWG. Using a larger wire gauge may not fit properly and could compromise the connector's performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSB7FP080202 Overview

Use the download button to access the SSB7FP080202 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSB7F, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
