SSF-LXH400GD - Lumex

Description: LED Circuit Board Indicators LED CBI

Download SSF-LXH400GD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

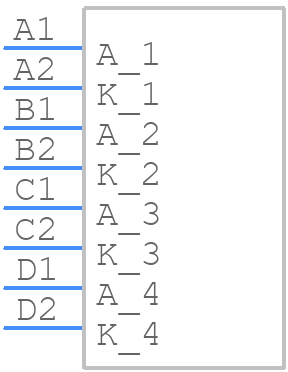

Symbol
SSF-LXH400GD - Lumex - PCB symbol
click to zoom
PCB Footprints
SSF-LXH400GD - Lumex PCB footprint - Other - Other - SSF-LXH400GD-2
click to zoom

SSF-LXH400GD Details

  • Manufacturer Part Number:

    SSF-LXH400GD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Luminous Intensity-Nom:

    8 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    4

  • Number of LEDs in Array:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -50 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    6 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    ROUND

  • Size:

    5 mm

  • Surface Mount:

    NO

  • T-code:

    T-1 3/4

  • Terminal Pitch:

    2.54 mm

SSF-LXH400GD Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SSF-LXH400GD is -40°C to 85°C, as specified by ITW Lumex.
  • To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided by ITW Lumex. Additionally, use a solder with a melting point above 217°C to prevent damage to the LED.
  • The maximum forward current rating for the SSF-LXH400GD is 1A, as specified in the datasheet. Exceeding this rating may cause damage to the LED or reduce its lifespan.
  • To prevent damage, store the SSF-LXH400GD in its original packaging or a similar protective container, away from direct sunlight and moisture. Avoid touching the LED pins or exposing them to static electricity.
  • While the SSF-LXH400GD is designed for indoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV radiation, and extreme temperatures. Consult with ITW Lumex or a qualified engineer for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSF-LXH400GD Overview

Use the download button to access the SSF-LXH400GD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SSF-L, or try a keyword search, such as Visible LEDs
