SSL1623PH/N1,112 - NXP

Description: LED Driver IC 1 Output AC DC Offline Switcher Flyback - Dimming 2A 16-DIP

Download SSL1623PH/N1,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

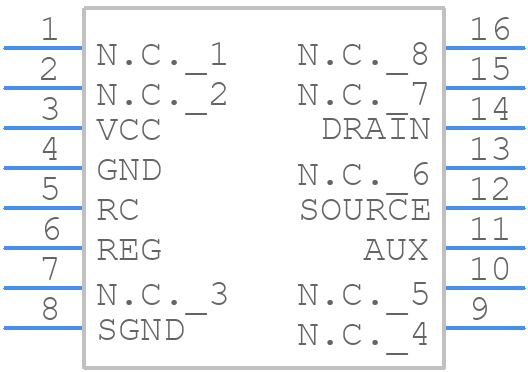

Symbol
SSL1623PH/N1,112 - NXP - PCB symbol
click to zoom

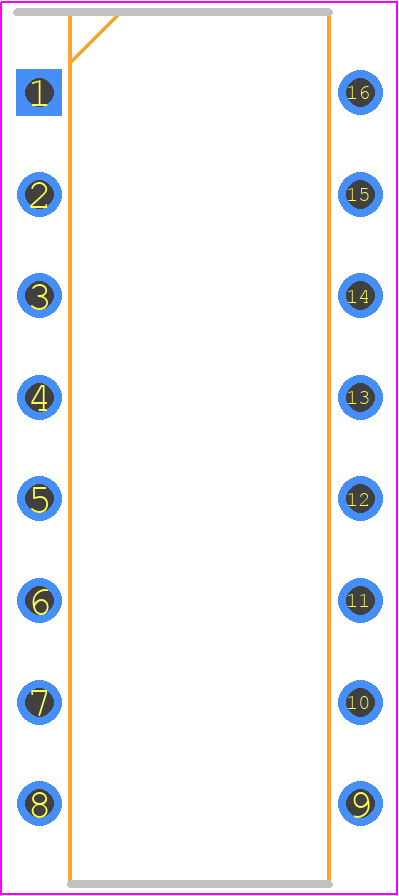

PCB Footprints
SSL1623PH/N1,112 - NXP PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16: plastic dual in-line package; 16 leads (300 mil); long body_2022
click to zoom
3D Models
SSL1623PH/N1,112 - NXP - 3D model - Dual-In-Line Packages - DIP16: plastic dual in-line package; 16 leads (300 mil); long body_2022
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for SSL1623PH/N1,112
  • Part Number SSL1623PH/N1,112
  • Manufacturer NXP
  • Pin Count 16
  • Part Category Integrated Circuit
  • Package Category Dual-In-Line Packages
  • Footprint Name Dual-In-Line Packages - DIP16: plastic dual in-line package; 16 leads (300 mil); long body_2022
  • Released Date Aug 18, 2022
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

SSL1623PH/N1,112 Details

  • Manufacturer Part Number:

    SSL1623PH/N1,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT38-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    276 V

  • Input Voltage-Min:

    80 V

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    21.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    145 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    4.7 mm

  • Supply Current-Max (Isup):

    1.9 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    200 kHz

  • Technology:

    SOI-CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

SSL1623PH/N1,112 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11542, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1-10 μF. Consult the application note AN11542 for more detailed guidance.
  • The SSL1623PH/N1,112 is rated for operation up to 85°C ambient temperature. However, derating may be necessary for high-power applications or high-temperature environments. Consult the datasheet and application notes for more information.
  • Follow the guidelines in the application note AN11542 for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI). Additionally, ensure that the system design meets the relevant EMC standards and regulations.
  • The output capacitor value and type depend on the output voltage, output current, and desired ripple voltage. A general guideline is to choose a capacitor with a capacitance value between 10-100 μF, and a voltage rating of at least 1.5 times the output voltage. Consult the application note AN11542 for more detailed guidance.
