SSM-116-L-SV-BE footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

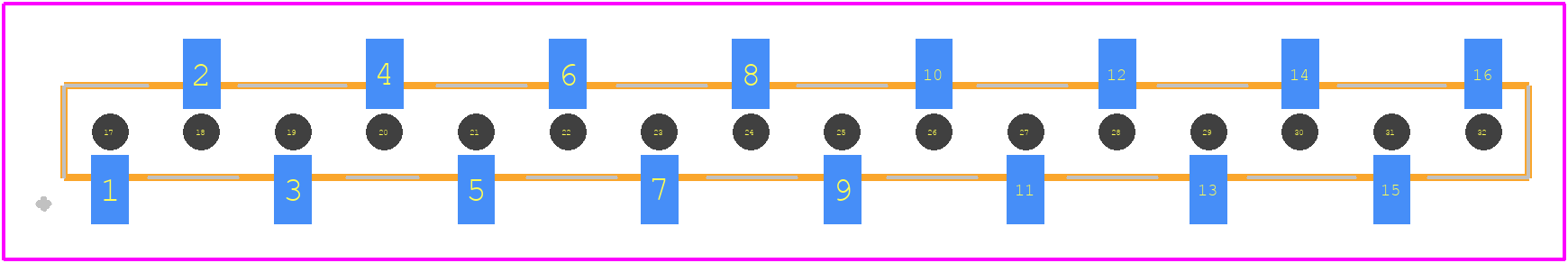

SSM-116-L-SV-BE - SAMTEC PCB footprint - Other - Other - SSM-116-L-SV-BE-3

click to zoom

3D Models

SSM-116-L-SV-BE - SAMTEC - 3D model - Other - SSM-116-L-SV-BE-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSM-116-L-SV-BE
Part Number SSM-116-L-SV-BE
Manufacturer SAMTEC
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - SSM-116-L-SV-BE-3
Released Date Oct 7, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SSM-116-L-SV-BE Details

Manufacturer Part Number:
SSM-116-L-SV-BE
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.1
Additional Feature:
E.L.P., TIGER CLAW
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
5.2 A
Terminal Pitch:
2.54 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
16

SSM-116-L-SV-BE Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, the SSM-116-L-SV-BE connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the SSM-116-L-SV-BE connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The SSM-116-L-SV-BE connector has a sealed design, but it's not fully hermetic. Samtec recommends following their guidelines for environmental sealing and using additional protection measures, such as conformal coating or potting, for humid or wet environments.
The recommended mating cycle for the SSM-116-L-SV-BE connector is 500-1000 cycles, depending on the application and environmental conditions. Samtec recommends following their guidelines for connector mating and unmating to ensure reliable connections.

Trust Checks

Expert Contribution

System Verified

Community Approved

SSM-116-L-SV-BE Overview

Use the download button to access the SSM-116-L-SV-BE schematic symbol, PCB footprint, and 3D model.
