SSM-125-L-DH-TR footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

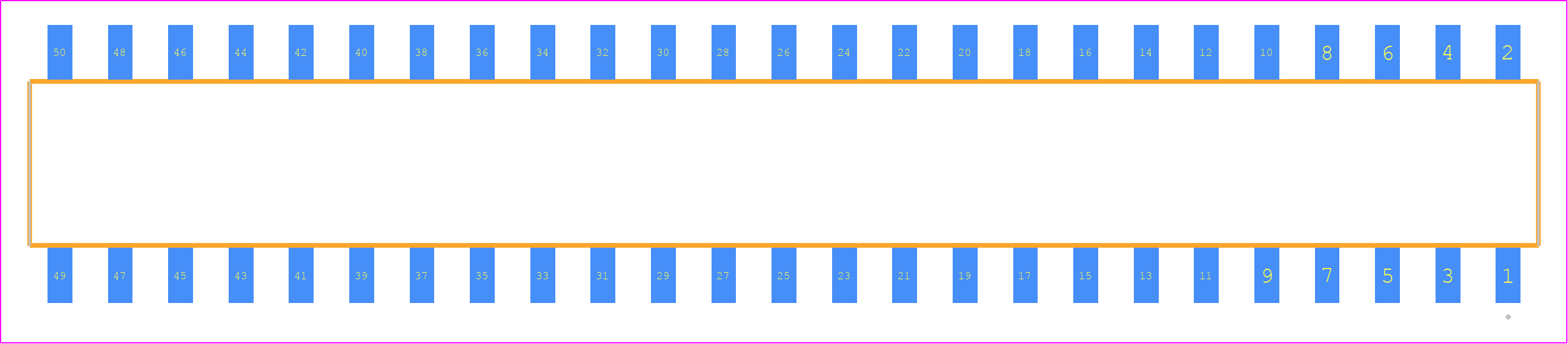

SSM-125-L-DH-TR - SAMTEC PCB footprint - Other - Other - SSM-125-XXX-DH-TR

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSM-125-L-DH-TR
Part Number SSM-125-L-DH-TR
Manufacturer SAMTEC
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - SSM-125-XXX-DH-TR
Released Date Jun 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SSM-125-L-DH-TR Details

Manufacturer Part Number:
SSM-125-L-DH-TR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
France, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.1
Additional Feature:
E.L.P., TIGER CLAW
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
5.2 A
Terminal Pitch:
2.54 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
50

SSM-125-L-DH-TR Frequently Asked Questions (FAQs)

The recommended torque for the screw-down mechanism is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure proper mating and prevent damage to the connector.
Yes, the SSM-125-L-DH-TR is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 2 vibration standard, which ensures reliable performance in applications with intense vibration.
The SSM-125-L-DH-TR is rated for operating temperatures ranging from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Samtec's application notes for specific guidance on using this connector in harsh environments.
The SSM-125-L-DH-TR has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
While the SSM-125-L-DH-TR is optimized for 1.57 mm PCB thickness, it can be used with PCBs of other thicknesses. However, Samtec recommends consulting their application notes and performing thorough testing to ensure reliable performance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SSM-125-L-DH-TR Overview

Use the download button to access the SSM-125-L-DH-TR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SSM-1, or try a keyword search, such as Headers and Edge Type Connectors
