SSM2018PZ - Analog Devices

Description: SSM2018PZ, Voltage Controlled Amplifier 1mV Offset, Complementary 16-Pin PDIP

Download SSM2018PZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

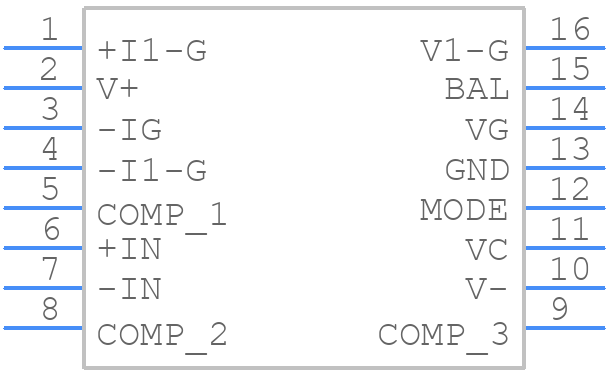

Symbol
SSM2018PZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2018PZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16
click to zoom
3D Models
SSM2018PZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16
click to zoom

SSM2018PZ Details

  • Manufacturer Part Number:

    SSM2018PZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

SSM2018PZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2018PZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are properly selected and placed. Additionally, a series resistor (Rs) can be added to the output to improve stability.
  • The maximum power dissipation of the SSM2018PZ is 1.4W. However, this can be affected by the ambient temperature, PCB layout, and airflow. It's essential to ensure proper thermal management to prevent overheating.
  • The SSM2018PZ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the operating temperature range and potential thermal management requirements.
  • To troubleshoot issues with the SSM2018PZ, start by verifying the power supply voltage, input and output signals, and PCB layout. Check for signs of overheating, oscillation, or component failure. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
