- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SSM2018TPZ
- Part Number SSM2018TPZ
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - N-16
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
SSM2018TPZ Details
-
Manufacturer Part Number:
SSM2018TPZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
DIP-16
-
Pin Count:
16
-
Manufacturer Package Code:
N-16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
SSM2018TPZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the SSM2018TPZ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source (e.g., 5V or 15V) and decouple it with a 10uF capacitor. The VEE pin should be connected to a negative voltage source (e.g., -5V or -15V) or ground, depending on the application. The ISET pin should be connected to a resistor (e.g., 1kΩ) to set the output current.
-
The maximum power dissipation of the SSM2018TPZ is 1.4W. To ensure reliable operation, the device should be operated within the recommended operating conditions, and proper thermal management (e.g., heat sink) should be implemented to prevent overheating.
-
The SSM2018TPZ is rated for operation from -40°C to 85°C. While it can operate in high-temperature environments, the device's performance and reliability may degrade above 70°C. Proper thermal management and derating may be necessary for high-temperature applications.
-
To protect the SSM2018TPZ from ESD, handle the device by the body or use an anti-static wrist strap. Ensure the PCB is designed with ESD protection in mind, using components like TVS diodes or ESD protection arrays. Follow proper ESD handling procedures during assembly and testing.
Trust Checks
Community Provided
System Verified
Community Approved
SSM2018TPZ Overview

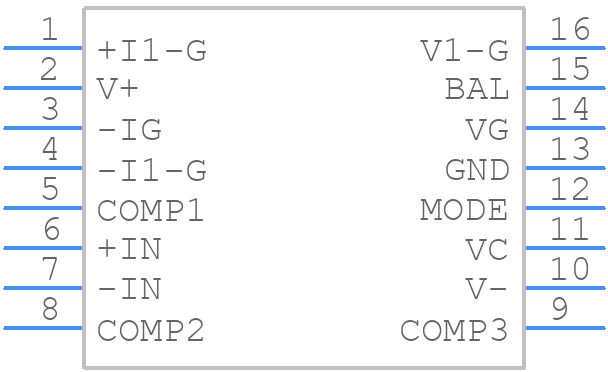

Use the download button to access the SSM2018TPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM20,
or try a keyword search, such as Other Signal Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
