- Part Number SSM2164PZ
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 16-Pin Plastic DIP
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
SSM2164PZ Details
-
Manufacturer Part Number:
SSM2164PZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
PLASTIC, DIP-16
-
Pin Count:
16
-
Manufacturer Package Code:
N-16
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
SSM2164PZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the SSM2164PZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed near the audio input connector to minimize noise pickup.
-
To ensure the SSM2164PZ operates within its recommended operating conditions, verify that the supply voltage is within the range of 4.5V to 5.5V, the operating temperature is between -40°C to 125°C, and the input signals are within the recommended common-mode voltage range. Also, ensure that the device is not exposed to excessive noise or EMI.
-
The recommended input impedance for the SSM2164PZ is 1 kΩ to 10 kΩ. This impedance range ensures that the device can drive the input capacitance and provide a stable output. Impedances outside this range may affect the device's performance and stability.
-
Yes, the SSM2164PZ can be used in a differential audio application. The device has a differential input stage that can handle differential audio signals. However, it's essential to ensure that the common-mode voltage is within the recommended range and that the input signals are properly balanced to minimize noise and distortion.
-
To troubleshoot issues with the SSM2164PZ, start by verifying the power supply voltage and ensuring it's within the recommended range. Check the input signals for distortion, noise, or clipping. Use an oscilloscope to visualize the input and output waveforms. Also, ensure that the device is properly decoupled and that the PCB layout is optimal. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
Community Provided
System Verified
Community Approved
SSM2164PZ Overview

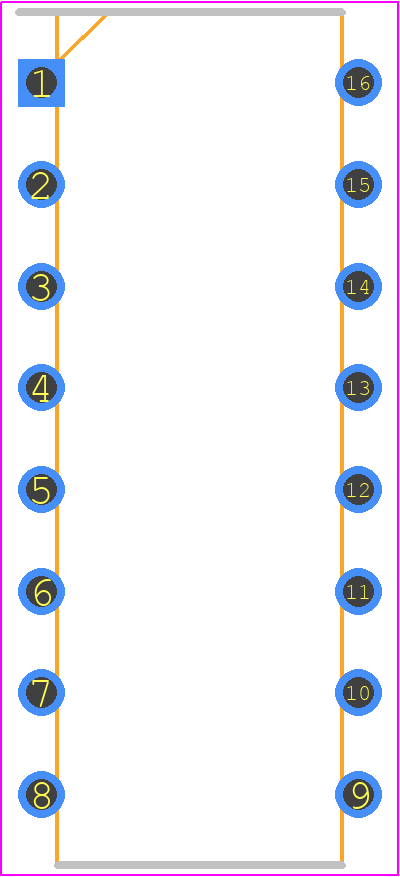

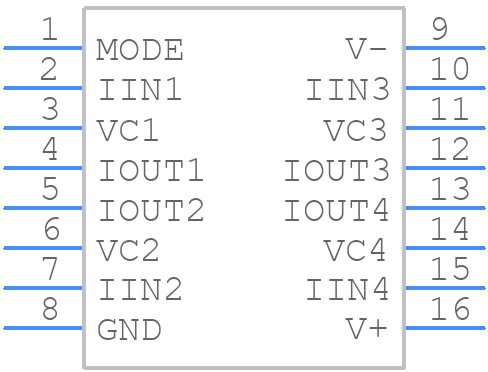

Use the download button to access the SSM2164PZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM21,
or try a keyword search, such as Audio Control ICs
