SSM2164SZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - SSM2164SZ-REEL7 - QUAL VOLTAGE CONTROL AMP

Download SSM2164SZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

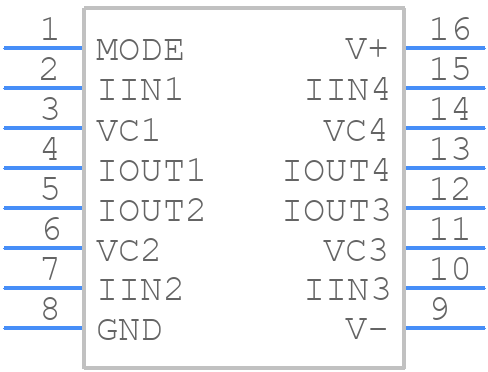

Symbol
SSM2164SZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2164SZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16A (SOIC)
click to zoom
3D Models
SSM2164SZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-16A (SOIC)
click to zoom

SSM2164SZ-REEL7 Details

  • Manufacturer Part Number:

    SSM2164SZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Channel Separation:

    110 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • Harmonic Distortion:

    0.3%

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SSM2164SZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2164SZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The SSM2164SZ requires a bias voltage of 5V to 15V, and the recommended bias current is 1mA to 10mA. Ensure that the bias voltage is clean and well-regulated, and that the bias current is within the recommended range.
  • The maximum power dissipation of the SSM2164SZ is 500mW. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range.
  • The SSM2164SZ is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range.
  • Common issues with the SSM2164SZ can be troubleshooted by checking the PCB layout, ensuring proper biasing, and verifying that the input and output signals are within the recommended ranges. Also, check for any signs of overheating or electrical overstress.
