SSM2164SZ - Analog Devices

Description: Low Cost Quad Voltage Controlled Amplifier

Download SSM2164SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

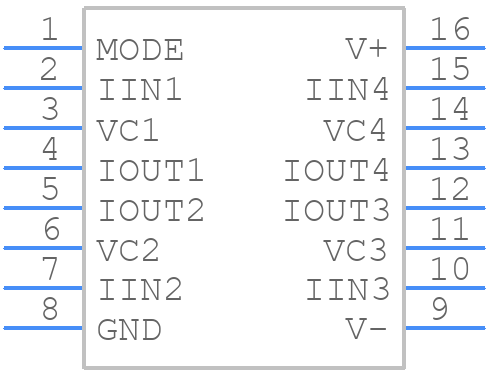

SSM2164SZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2164SZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16A (SOIC)
click to zoom
3D Models
SSM2164SZ - Analog Devices - 3D model - Small Outline Packages - R-16A (SOIC)
click to zoom

SSM2164SZ Details

  • Manufacturer Part Number:

    SSM2164SZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Channel Separation:

    110 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • Harmonic Distortion:

    0.3%

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SSM2164SZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2164SZ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input signals are within the recommended common-mode voltage range, and that the output load is within the recommended range.
  • The maximum power dissipation of the SSM2164SZ is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device.
  • The SSM2164SZ is rated for operation from -40°C to +125°C. However, the device's performance may degrade at high temperatures. It's recommended to derate the power dissipation and ensure good heat sinking to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the SSM2164SZ, start by checking the power supply voltage and ensuring it's within the recommended range. Then, check the input and output signals for distortion or clipping. If the issue persists, try swapping the device with a new one or checking the PCB layout for any errors or noise coupling.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SSM2164SZ Overview

Use the download button to access the SSM2164SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM21, or try a keyword search, such as Audio Control ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
