SSM2380CBZ-REEL7 - Analog Devices

Description: Audio Amp Speaker 2-CH Stereo 3.2W Class-D 16-Pin WLCSP T/R

Download SSM2380CBZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

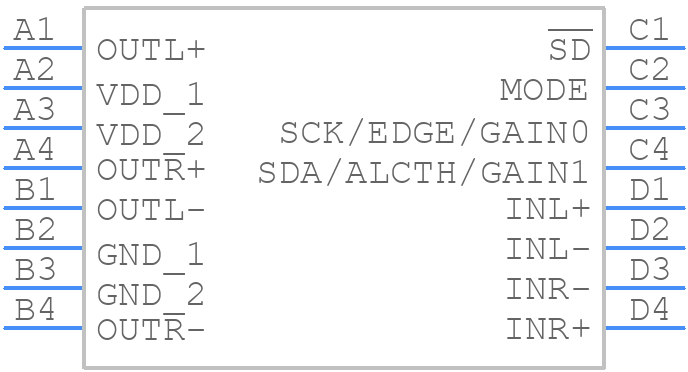

SSM2380CBZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2380CBZ-REEL7 - Analog Devices PCB footprint - BGA - BGA - . 16-Ball Wafer Level Chip Scale Package [WLCSP] (CB-16-3)
click to zoom
3D Models
SSM2380CBZ-REEL7 - Analog Devices - 3D model - BGA - . 16-Ball Wafer Level Chip Scale Package [WLCSP] (CB-16-3)
click to zoom

SSM2380CBZ-REEL7 Details

  • Manufacturer Part Number:

    SSM2380CBZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    WLCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CB-16-3

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    6 dB

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.64 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2 mm

SSM2380CBZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2380CBZ-REEL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is properly sized and placed close to the device, and that the input and output traces are properly decoupled. Also, make sure to follow the recommended PCB layout guidelines and use a low-ESR output capacitor.
  • The SSM2380CBZ-REEL7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
  • Yes, the SSM2380CBZ-REEL7 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments.
  • To troubleshoot issues, start by verifying the power supply voltage, input and output voltages, and output current. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSM2380CBZ-REEL7 Overview

Use the download button to access the SSM2380CBZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM23, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
