SSM2603CPZ-REEL7 - Analog Devices

Description: Low Power Audio Codec

Download SSM2603CPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

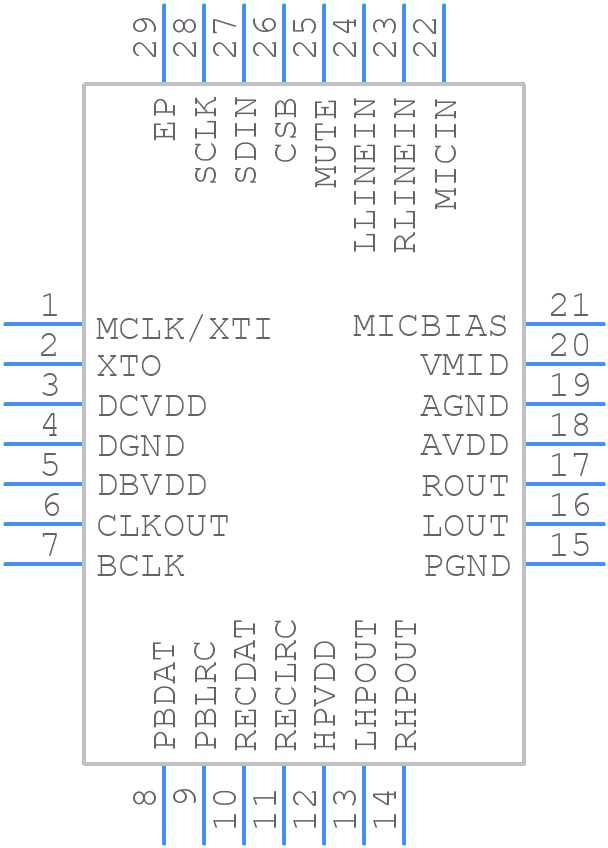

SSM2603CPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2603CPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead Lead Frame Chip Scale Package [LFCSP_WQ]
click to zoom
3D Models
SSM2603CPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - 28-Lead Lead Frame Chip Scale Package [LFCSP_WQ]
click to zoom

SSM2603CPZ-REEL7 Details

  • Manufacturer Part Number:

    SSM2603CPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Filter:

    YES

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

SSM2603CPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2603CPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
  • To ensure proper biasing, connect the VDD pin to a stable voltage source between 2.7V and 5.5V, and decouple it with a 10uF capacitor to ground. Also, ensure the input voltage is within the recommended range of 0.5V to VDD-1.5V.
  • The maximum power dissipation of the SSM2603CPZ-REEL7 is 250mW. To ensure reliable operation, the device should be operated at a junction temperature below 150°C.
  • To troubleshoot issues with the SSM2603CPZ-REEL7, check the power supply voltage, input signal integrity, and PCB layout for any noise or interference. Also, verify that the device is properly biased and the input voltage is within the recommended range.
  • The SSM2603CPZ-REEL7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper heat sinking to maintain reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SSM2603CPZ-REEL7 Overview

Use the download button to access the SSM2603CPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSM26, or try a keyword search, such as Codecs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
