SSM2604CPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - SSM2604CPZ-REEL7 - AUDIO CODEC, 24BIT, 96KSPS, LFCSP-20

Download SSM2604CPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

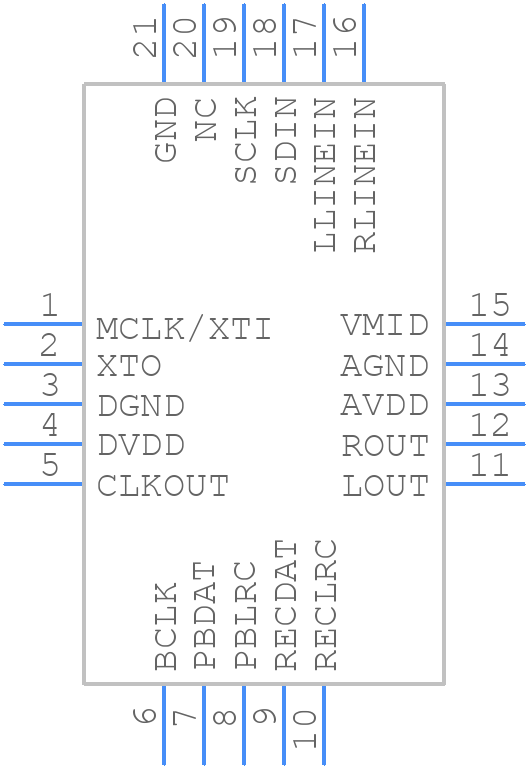

SSM2604CPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
SSM2604CPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SSM2604CPZ-REEL7
click to zoom
3D Models
SSM2604CPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - SSM2604CPZ-REEL7
click to zoom

SSM2604CPZ-REEL7 Details

  • Manufacturer Part Number:

    SSM2604CPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-8

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Filter:

    YES

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

SSM2604CPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the SSM2604CPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure proper biasing, connect the VDD pin to a 2.7V to 5.5V power supply, and the VSS pin to a solid ground plane. The VBIAS pin should be connected to a 1.5V to 2.5V voltage source, and the VREF pin should be connected to a stable 1.23V voltage source.
  • The maximum power dissipation of the SSM2604CPZ-REEL7 is 500mW. To ensure reliable operation, the device should be operated at a junction temperature below 150°C.
  • To filter out noise and interference, use a low-pass filter with a cutoff frequency of 100kHz to 1MHz, depending on the specific application requirements. A ferrite bead or a common-mode choke can also be used to filter out high-frequency noise.
