SSM6J507NU,LF(T - Toshiba

Description: Trans MOSFET P-CH Si 30V 10A 6-Pin UDFN EP T/R

Download SSM6J507NU,LF(T Model

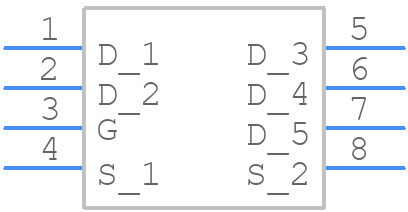

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SSM6J507NU,LF(T - Toshiba PCB footprint - Other - Other - SSM6J507NU,LF(T-3
click to zoom
3D Models
SSM6J507NU,LF(T - Toshiba  - 3D model - Other - SSM6J507NU,LF(T-3
click to zoom

SSM6J507NU,LF(T Details

  • Manufacturer Part Number:

    SSM6J507NU,LF(T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN6B, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.4

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    10 A

  • Drain-source On Resistance-Max:

    0.032 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    185 pF

  • JESD-30 Code:

    S-PDSO-N6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.25 W

  • Pulsed Drain Current-Max (IDM):

    30 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SSM6J507NU,LF(T Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Toshiba recommends using a soldering iron with a temperature of 350°C or less, and a soldering time of 3 seconds or less. The device should be soldered using a fluxless soldering process.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it is recommended to keep the input voltage within the recommended operating range of 4.5V to 5.5V for reliable operation.
  • Toshiba recommends using ESD protection devices such as TVS diodes or ESD protection ICs on the input lines to protect the device from electrostatic discharge. Additionally, handling the device with an anti-static wrist strap or mat is recommended.
  • The recommended operating temperature range for this device is -40°C to 125°C. However, the device can operate up to 150°C for short periods of time, but this may affect its reliability and lifespan.
