SSM6J511NU,LF - Toshiba

Description: P-Channel 12 V 14A (Ta) Surface Mount 6-UDFNB (2x2) 9.1mOhm @ 4A, 8V -55°C ~ 150°C (TJ)

Download SSM6J511NU,LF Model

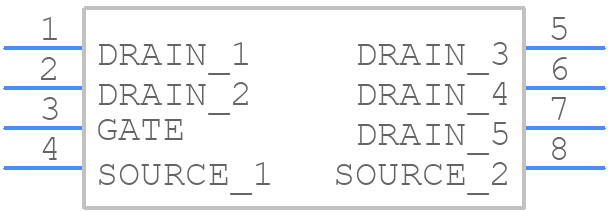

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SSM6J511NU,LF - Toshiba PCB footprint - Other - Other - 2-2AA1A_2026
click to zoom
3D Models
SSM6J511NU,LF - Toshiba  - 3D model - Other - 2-2AA1A_2026
click to zoom

SSM6J511NU,LF Details

  • Manufacturer Part Number:

    SSM6J511NU,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-1220, UDFN6B, 6 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.4

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    12 V

  • Drain Current-Max (ID):

    14 A

  • Drain-source On Resistance-Max:

    0.0192 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    570 pF

  • JESD-30 Code:

    S-PDSO-N6

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.25 W

  • Pulsed Drain Current-Max (IDM):

    40 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SSM6J511NU,LF Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for SSM6J511NU,LF is 4.5V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 10uF or more between the VOUT and GND pins, and to keep the input voltage stable.
  • The maximum output current that SSM6J511NU,LF can provide is 1.5A.
  • To protect SSM6J511NU,LF from overheating, it is recommended to provide adequate heat sinking, keep the device away from high-temperature environments, and ensure good airflow around the device.
  • The typical dropout voltage of SSM6J511NU,LF is 1.2V.
