SSRA-240D2 - TE Connectivity

Description: Body Features: Product Weight .15 OZ | Product Weight 4.3 G | Primary Product Color Black | Configuration Features: Output Switching Zero | Contact Features: Switch Arrangement 1 Form A (SPST-NO) | Contact Arrangement 1 Form A (SPST-NO) | Dimensions: Product Length .948 INCH | Product Width 5.1 MM | Product Height 12.7 MM | Product Length 24.1 MM | Product Height .5 INCH | Product Width .2 INCH | Electrical Characteristics: Output Current (Min) .06 AMP | Insulation Initial Dielectric Between Contacts & Coil

Download SSRA-240D2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

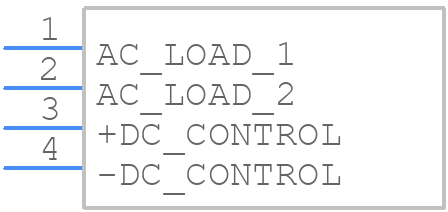

SSRA-240D2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
SSRA-240D2 - TE Connectivity PCB footprint - Other - Other - SSRA-240D2-1
click to zoom
3D Models
SSRA-240D2 - TE Connectivity - 3D model - Other - SSRA-240D2-1
click to zoom

SSRA-240D2 Details

  • Manufacturer Part Number:

    SSRA-240D2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    37 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.73

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR
