SSS-12LG-V-T/R - Diptronics

Description: Slide Switches Slide Type 1P2T (2.0mm height) SPDT 300mA 4VDC

Download SSS-12LG-V-T/R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SSS-12LG-V-T/R model

Email notifications will be applied after download.

Send part feedback

Symbol

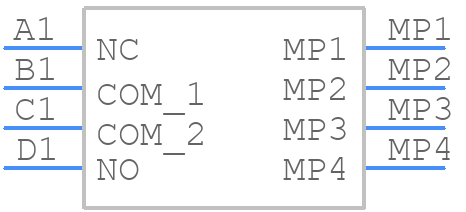

SSS-12LG-V-T/R - Diptronics - PCB symbol

PCB Footprints

SSS-12LG-V-T/R - Diptronics PCB footprint - Other - Other - SSS-12LG-V-T/R-1

3D Models

SSS-12LG-V-T/R - Diptronics - 3D model - Other - SSS-12LG-V-T/R-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for SSS-12LG-V-T/R
Part Number SSS-12LG-V-T/R
Manufacturer Diptronics
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - SSS-12LG-V-T/R-1
Released Date Sep 25, 2025
Last Modified Date Dec 4, 2025 5:32 AM UTC
Pinout / Pin List Click Here (Member Only)

SSS-12LG-V-T/R Details

Manufacturer Part Number:
SSS-12LG-V-T/R
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Diptronics Manufacturing Inc
Switch Type:
SLIDE SWITCH

Trust Checks

Community Provided

System Verified

Community Approved

SSS-12LG-V-T/R Overview

Use the download button to access the SSS-12LG-V-T/R schematic symbol, PCB footprint, and 3D model.
