SST12CP11-QVCE - Microchip

Description: Microchip SST12CP11-QVCE, RF Amplifier Power 3-channel 2.5 GHz, 16-Pin VQFN

Download SST12CP11-QVCE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

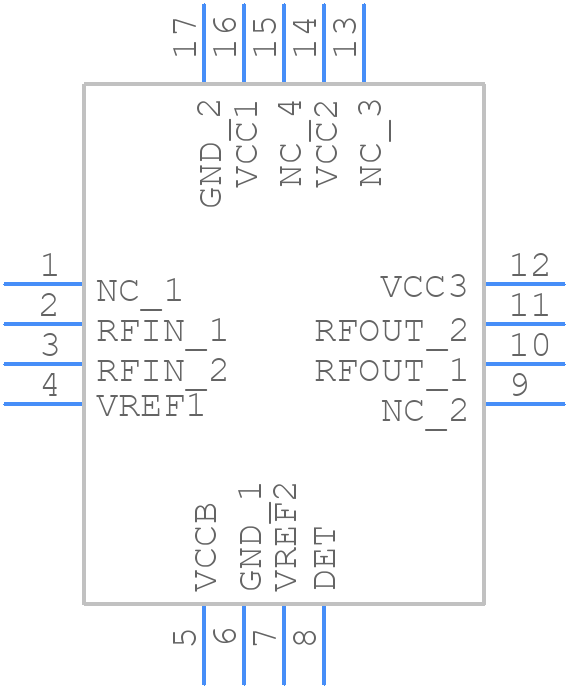

SST12CP11-QVCE - Microchip - PCB symbol
click to zoom
PCB Footprints
SST12CP11-QVCE - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3306P-1-105
click to zoom
3D Models
SST12CP11-QVCE - Microchip - 3D model - Quad Flat No-Lead - 3306P-1-105
click to zoom

SST12CP11-QVCE Details

  • Manufacturer Part Number:

    SST12CP11-QVCE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR
