3 X 3 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, MO-248D, UQFN-16
Country Of Origin:
Thailand
HTS Code:
8542.39.00.01
Manufacturer:
Microchip Technology Inc
JESD-30 Code:
S-XQCC-N16
Length:
3 mm
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.6 mm
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Telecom IC Type:
TELECOM CIRCUIT
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
3 mm
SST12CP33-QUCE Frequently Asked Questions (FAQs)
Microchip provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the clock signal traces short and away from noisy signals, using a solid ground plane, and minimizing vias and layer changes.
To ensure reliable operation, follow the recommended operating conditions, including voltage and temperature ranges. Also, consider the device's thermal characteristics, such as thermal resistance and junction temperature, when designing your system.
In high-reliability or safety-critical applications, it's essential to follow Microchip's guidelines for fault detection and correction, as well as implementing redundant systems and error correction mechanisms. Additionally, consider the device's FIT (Failure In Time) rate and MTBF (Mean Time Between Failures) when designing your system.
To troubleshoot issues, use a logic analyzer or oscilloscope to monitor the device's signals, such as the clock, reset, and data lines. Also, review the device's status registers and error flags to identify the source of the issue. Consult Microchip's documentation and application notes for guidance on troubleshooting specific issues.
When using the SST12CP33-QUCE in a system with multiple power domains or voltage regulators, ensure that the device's power supply is stable and within the recommended operating range. Also, consider the device's power sequencing requirements and ensure that the power supplies are properly sequenced to avoid damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SST12CP33-QUCE Overview

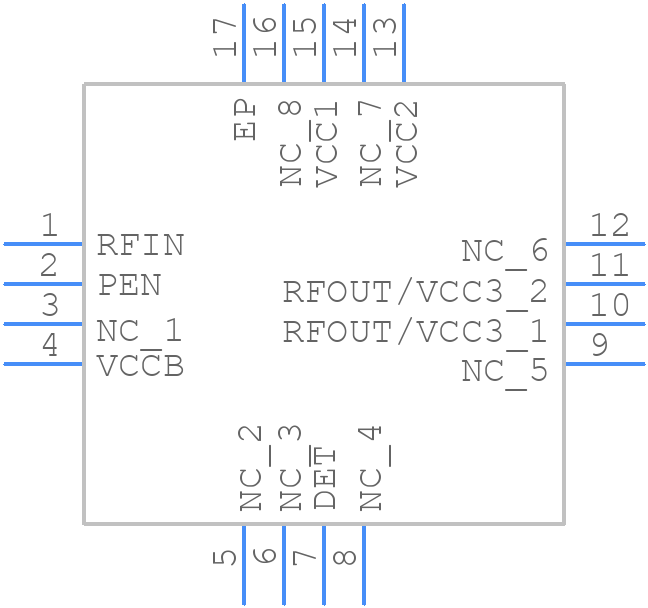

Use the download button to access the SST12CP33-QUCE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SST12,
or try a keyword search, such as Other Telecom ICs
