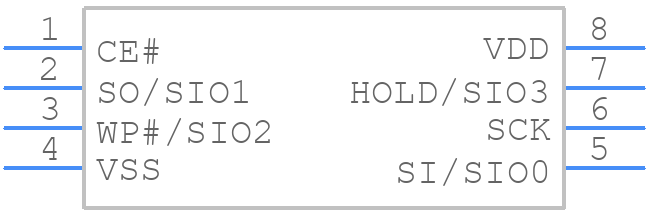

SST26VF032BT-104I/SM - Microchip

SST26VF032BT-104I/SM Details

• Manufacturer Part Number:

  SST26VF032BT-104I/SM

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  8

• Manufacturer Package Code:

  SOIJ-8

• Country Of Origin:

  Thailand

• ECCN Code:

  3A991.B.1.A

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  13

• Clock Frequency-Max (fCLK):

  104 MHz

• Data Retention Time-Min:

  100

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  5.26 mm

• Memory Density:

  33554432 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  8

• Number of Words:

  4194304 words

• Number of Words Code:

  4000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  4MX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Parallel/Serial:

  SERIAL

• Programming Voltage:

  3 V

• Qualification Status:

  Not Qualified

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.03 mm

• Serial Bus Type:

  SPI

• Standby Current-Max:

  0.000045 A

• Supply Current-Max:

  0.03 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Type:

  NOR TYPE

• Width:

  5.25 mm

• Write Protection:

  HARDWARE/SOFTWARE
