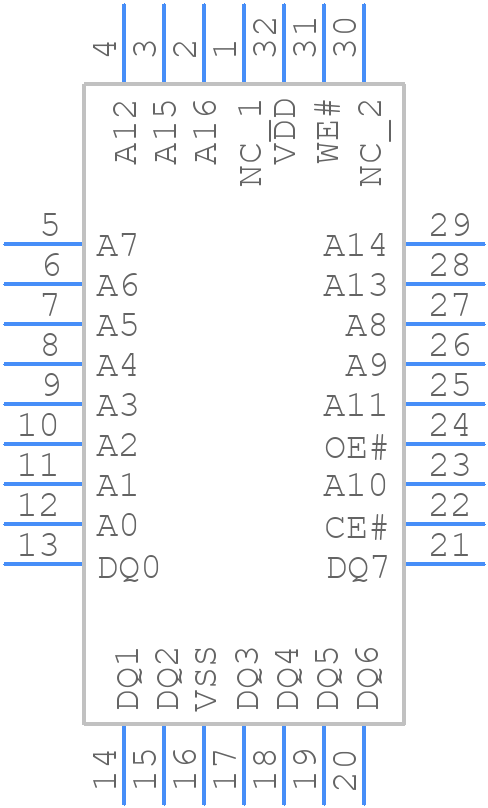

SST39LF010-55-4C-NHE - Microchip

SST39LF010-55-4C-NHE Details

• Manufacturer Part Number:

  SST39LF010-55-4C-NHE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

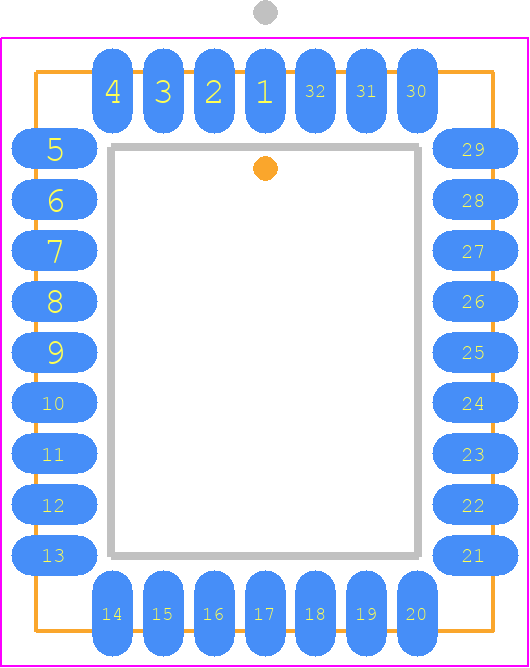

• Package Description:

  LCC-32

• Pin Count:

  32

• Manufacturer Package Code:

  PLCC-32

• Country Of Origin:

  Thailand

• ECCN Code:

  3A991.B.1.A

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  6 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  9

• Access Time-Max:

  55 ns

• Command User Interface:

  YES

• Data Polling:

  YES

• Data Retention Time-Min:

  100

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PQCC-J32

• Length:

  13.97 mm

• Memory Density:

  1048576 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Sectors/Size:

  32

• Number of Terminals:

  32

• Number of Words:

  131072 words

• Number of Words Code:

  128000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  128KX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC32,.5X.6

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  245

• Programming Voltage:

  3.3 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.556 mm

• Sector Size:

  4K

• Standby Current-Max:

  0.000015 A

• Supply Current-Max:

  0.02 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  11.43 mm
