Part Image

SST39VF1682-70-4I-EKE - Microchip

Description: NOR Flash 2.7 to 3.6V 16Mbit Multi-Purpose Flash

Download SST39VF1682-70-4I-EKE Model

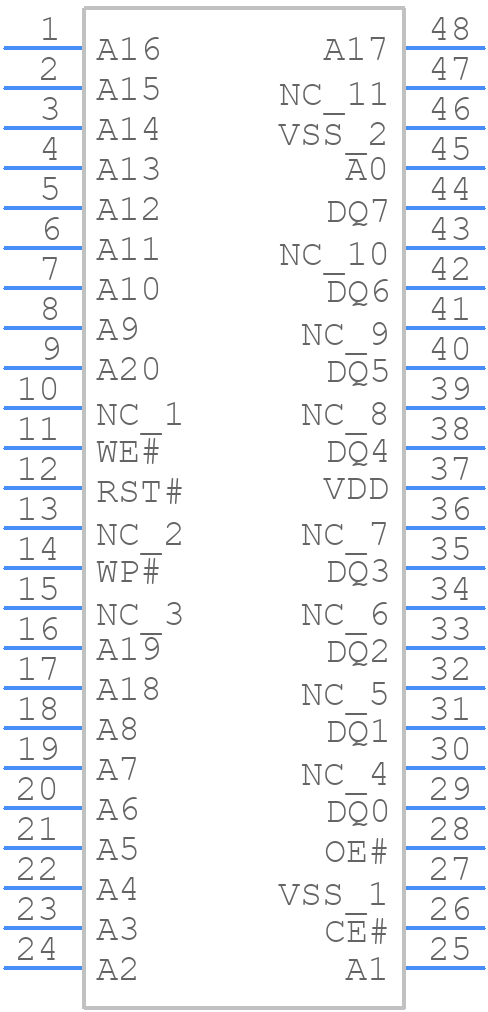

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

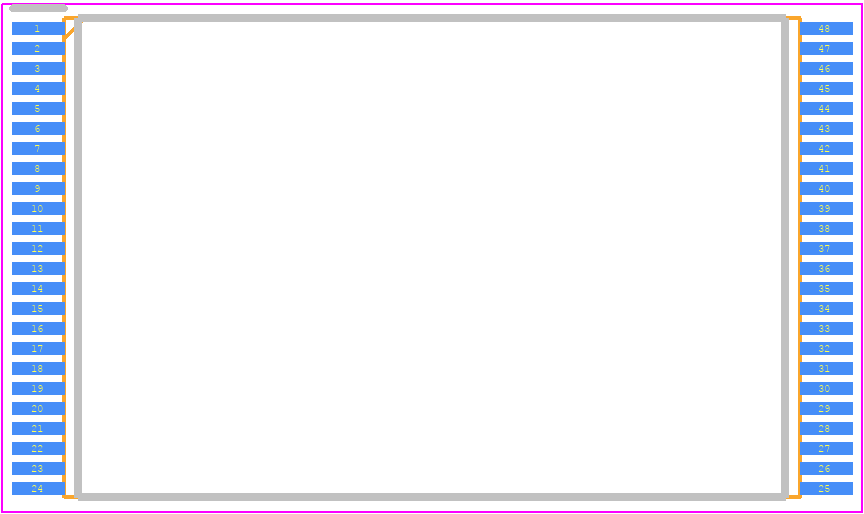

SST39VF1682-70-4I-EKE - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 48-Lead Thin Small Outline Package (EKE/F) - [TSOP]
click to zoom
3D Models
SST39VF1682-70-4I-EKE - Microchip  - 3D model - Small Outline Packages - 48-Lead Thin Small Outline Package (EKE/F) - [TSOP]
click to zoom

SST39VF1682-70-4I-EKE Details

  • Manufacturer Part Number:

    SST39VF1682-70-4I-EKE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP1

  • Package Description:

    12 X 20 MM, LEAD FREE, MO-142DD, TSOP1-48

  • Pin Count:

    48

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.B.1.A

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24.92

  • Access Time-Max:

    70 ns

  • Additional Feature:

    TOP BOOT BLOCK

  • Boot Block:

    TOP

  • Command User Interface:

    YES

  • Common Flash Interface:

    YES

  • Data Polling:

    YES

  • Data Retention Time-Min:

    100

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Sectors/Size:

    512

  • Number of Terminals:

    48

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Ready/Busy:

    YES

  • Seated Height-Max:

    1.2 mm

  • Sector Size:

    4K

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Toggle Bit:

    YES

  • Type:

    NOR TYPE

  • Width:

    12 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SST39VF1682-70-4I-EKE Overview

Use the download button to access the SST39VF1682-70-4I-EKE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SST39, or try a keyword search, such as Flash Memories

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to SST39VF1682-70-4I-EKE

Showing 0 results

SST39VF1682-70-4I-EKE Alternates

Showing results

Image Part Number Model
Part Image SST39VF1682-70-4C-EKE Microchip Technology Inc

2M X 8 FLASH 2.7V PROM, 70 ns, PDSO48, 12 X 20 MM, LEAD FREE, MO-142DD, TSOP1-48
