The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the SSW-110-01-G-D-005 is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the SSW-110-01-G-D-005 is 125°C (257°F) according to Samtec's datasheet and application notes.
While the SSW-110-01-G-D-005 is designed for standard 1.57 mm (0.062 in) PCB thickness, Samtec recommends consulting their application engineers for custom PCB thicknesses. They may be able to provide guidance or custom solutions.
The mating cycle life of the SSW-110-01-G-D-005 is 500 cycles minimum according to Samtec's datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SSW-110-01-G-D-005 Overview

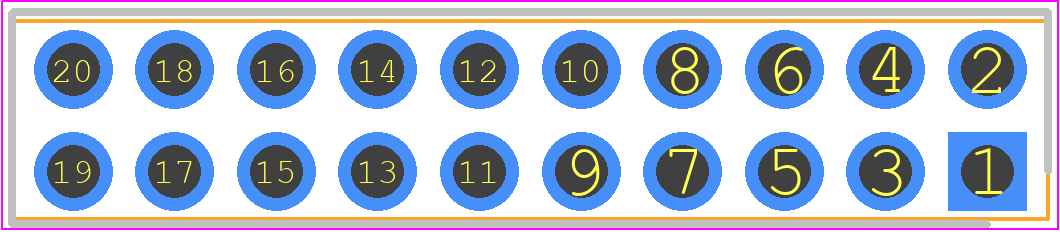

Use the download button to access the SSW-110-01-G-D-005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SSW-1,
or try a keyword search, such as Headers and Edge Type Connectors
