ST1-DC24V-F - Panasonic

Description: 1 Form A 1 Form B/2 Form A, 8 A, Polarized power relays

Download ST1-DC24V-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ST1-DC24V-F - Panasonic - PCB symbol
click to zoom
PCB Footprints

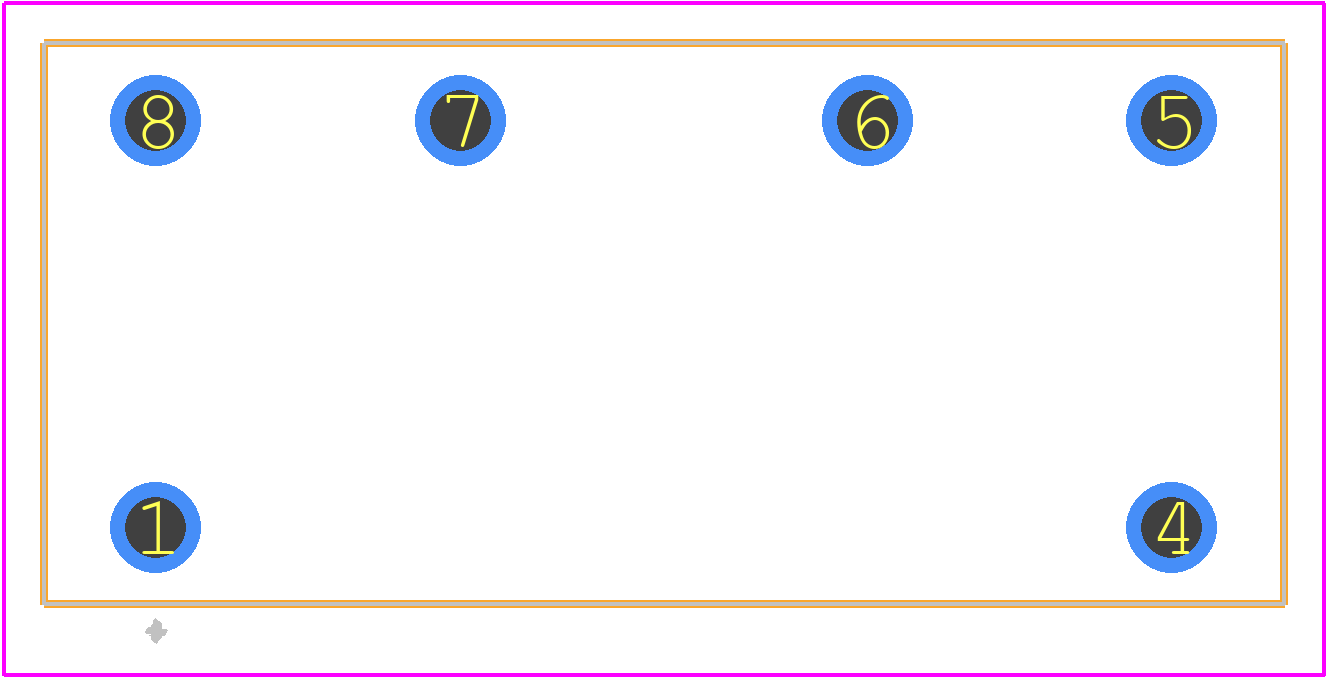

ST1-DC24V-F - Panasonic PCB footprint - Other - Other - ST1-DC24V-F-3
click to zoom
3D Models
ST1-DC24V-F - Panasonic - 3D model - Other - ST1-DC24V-F-3
click to zoom

ST1-DC24V-F Details

  • Manufacturer Part Number:

    ST1-DC24V-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Body Breadth:

    14 mm

  • Body Height:

    11.3 mm

  • Body Length or Diameter:

    31 mm

  • Coil Current(DC)-Max:

    0.01 A

  • Coil Operate Voltage(DC):

    19.2 V

  • Coil Power:

    240 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    2400 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil Voltage-Nom:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Power Rating R Load:

    3040VA@380VAC

  • Contact (AC) Max Rating R Load:

    8A@380VAC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact (DC) Max Power Rating R Load:

    150W@250VDC

  • Contact (DC) Max Rating R Load:

    8A@250VDC

  • Contact Resistance:

    30 mΩ

  • Contact Voltage(AC)-Max:

    380 V

  • Contact Voltage(DC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    Silver Tin Oxide

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    8

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    31mm x 14mm x 11.3mm

  • Reference Standard:

    CSA; SEV; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM A,B

  • Relay Function:

    DPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Terminal Length:

    0.003500127000254001 inch

  • Termination Type:

    SOLDER

ST1-DC24V-F Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the ST1-DC24V-F relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
  • The ST1-DC24V-F relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application.
  • Panasonic recommends a minimum spacing of 1.5 mm between the relay and other components on the PCB to ensure proper heat dissipation and to prevent electrical interference. It's also recommended to follow Panasonic's recommended PCB layout guidelines to ensure optimal performance and reliability.
  • The ST1-DC24V-F relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application and to discuss any additional measures that may be necessary to ensure reliable operation in high-vibration environments.
  • Panasonic recommends derating the relay's current capacity by 1.5% per degree Celsius above 40°C to ensure reliable operation and to prevent overheating. It's recommended to consult with Panasonic's application engineers to determine the suitable derating curve for your specific application.
