ST1-DC48V-F - Panasonic

ST1-DC48V-F Details

• Manufacturer Part Number:

  ST1-DC48V-F

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7

• Body Breadth:

  14 mm

• Body Height:

  11.3 mm

• Body Length or Diameter:

  31 mm

• Coil Current(DC)-Max:

  0.005 A

• Coil Operate Voltage(DC):

  38.4 V

• Coil Power:

  240 mW

• Coil Release Voltage(DC):

  4.8 V

• Coil Resistance:

  9000 Ω

• Coil Voltage(DC)-Max:

  48 V

• Coil Voltage-Nom:

  48 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  3040VA@380VAC

• Contact (AC) Max Rating R Load:

  8A@380VAC

• Contact Current(AC)-Max:

  8 A

• Contact Current(DC)-Max:

  8 A

• Contact (DC) Max Power Rating R Load:

  150W@250VDC

• Contact (DC) Max Rating R Load:

  8A@250VDC

• Contact Resistance:

  30 mΩ

• Contact Voltage(AC)-Max:

  380 V

• Contact Voltage(DC)-Max:

  250 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

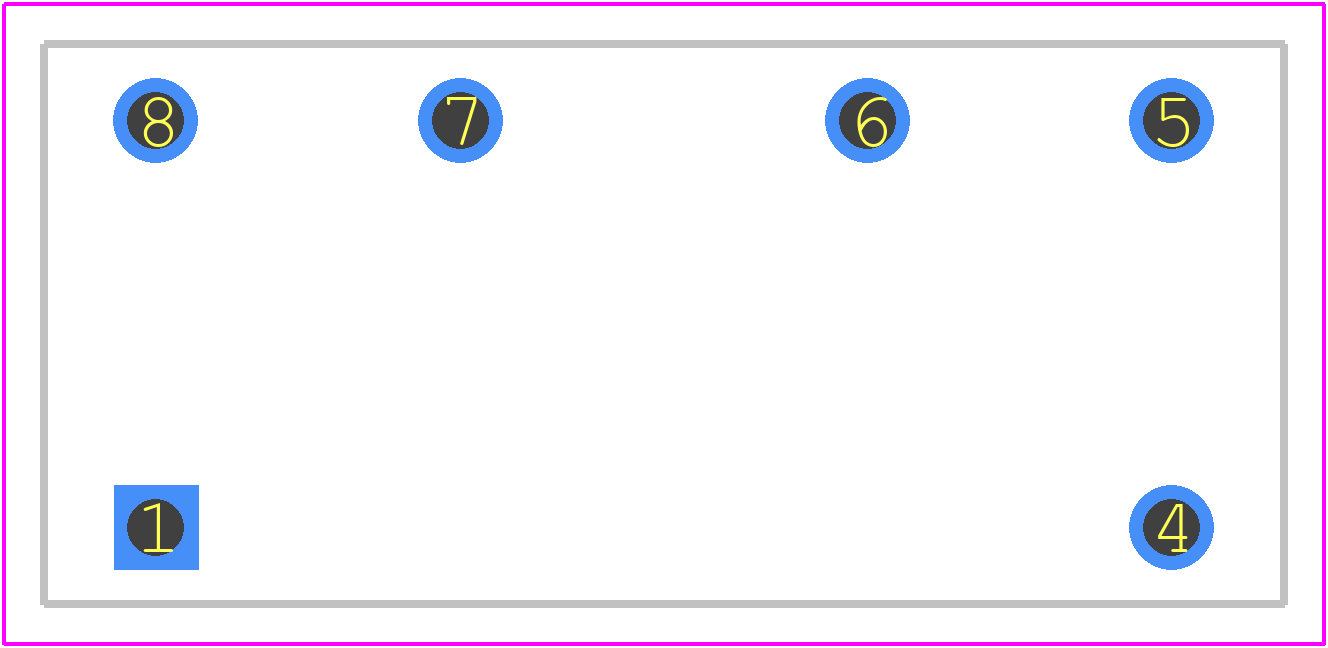

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  8

• Operate Time:

  15 ms

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TUBE

• Physical Dimension:

  31mm x 14mm x 11.3mm

• Reference Standard:

  CSA; SEV; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A,B

• Relay Function:

  DPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003500127000254001 inch

• Termination Type:

  SOLDER
