The maximum switching frequency of the ST1-L2-DC12V-F relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The ST1-L2-DC12V-F relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to derate the relay's current capacity and switching frequency in high-temperature environments.
To ensure the relay's contacts are clean and free of contamination, it's recommended to handle the relay by the tabs or casing, avoiding direct contact with the contacts. Additionally, the relay should be stored in a clean, dry environment, and any cleaning should be done with a soft, dry brush or a lint-free cloth.
The recommended PCB layout and spacing for the ST1-L2-DC12V-F relay can be found in the Panasonic application note 'Relay Mounting and PCB Layout Guidelines'. Generally, it's recommended to maintain a minimum clearance of 1.5 mm between the relay and other components, and to ensure the relay is mounted on a solid, unbroken ground plane.
The ST1-L2-DC12V-F relay is not designed for use in safety-critical applications. If you require a relay for a safety-critical application, it's recommended to consult with Panasonic's application engineers to select a suitable relay that meets the necessary safety standards and certifications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ST1-L2-DC12V-F Overview

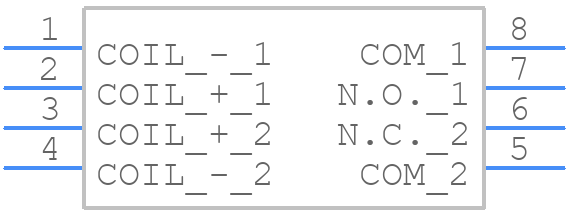

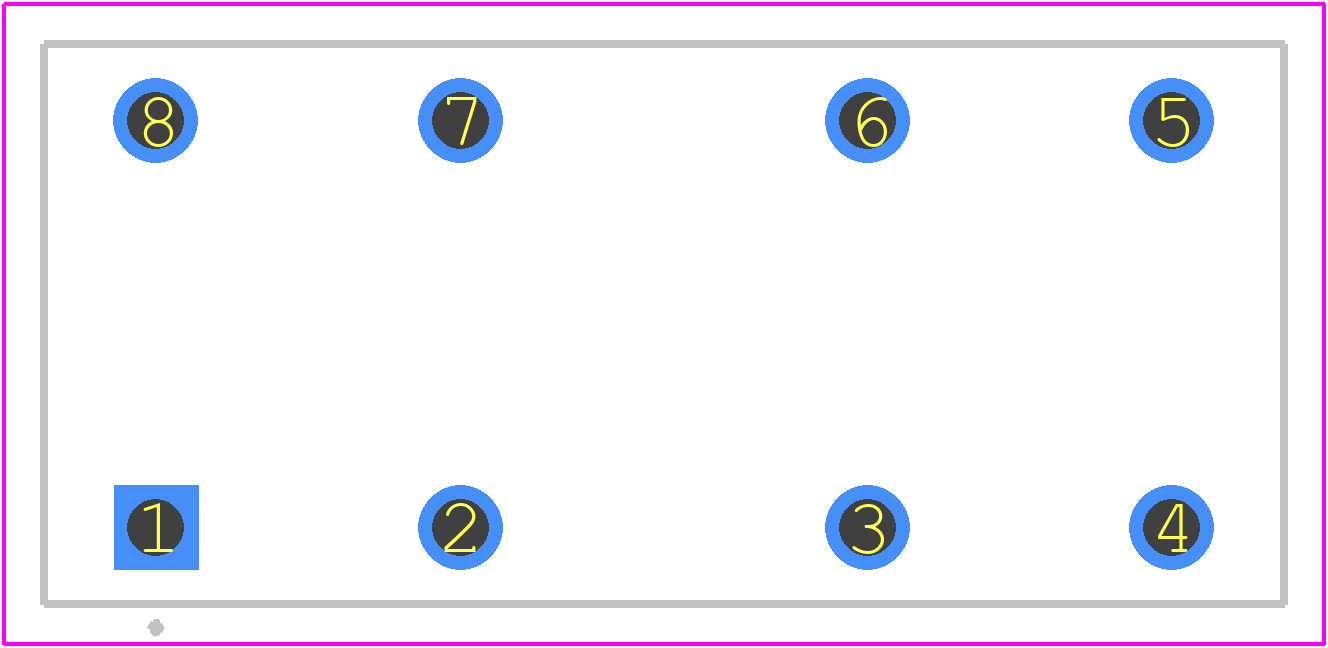

Use the download button to access the ST1-L2-DC12V-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST1-L,
or try a keyword search, such as Power/Signal Relays
