The recommended storage condition for the ST1-L2-DC3V-F is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid storing the components in direct sunlight or near heat sources.
While the ST1-L2-DC3V-F is designed to be robust, it's essential to consider the vibration specifications in your application. Panasonic recommends following the vibration testing guidelines outlined in the IEC 60068-2-6 standard. If your application exceeds these guidelines, consult with Panasonic's technical support team for customized guidance.
To prevent damage during soldering, follow these guidelines: use a soldering iron with a temperature below 350°C, avoid applying excessive force or pressure, and limit the soldering time to 3 seconds or less. Additionally, ensure the component is properly secured to the PCB to prevent movement during the soldering process.
Panasonic provides a recommended PCB layout and land pattern for the ST1-L2-DC3V-F in their application notes or technical documentation. It's essential to follow these guidelines to ensure proper component functionality and prevent thermal or electrical issues.
While the ST1-L2-DC3V-F has some level of moisture resistance, it's not designed for applications with extremely high humidity or moisture. If your application requires operation in humid environments, consider using a conformal coating or potting compound to protect the component. Consult with Panasonic's technical support team for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ST1-L2-DC3V-F Overview

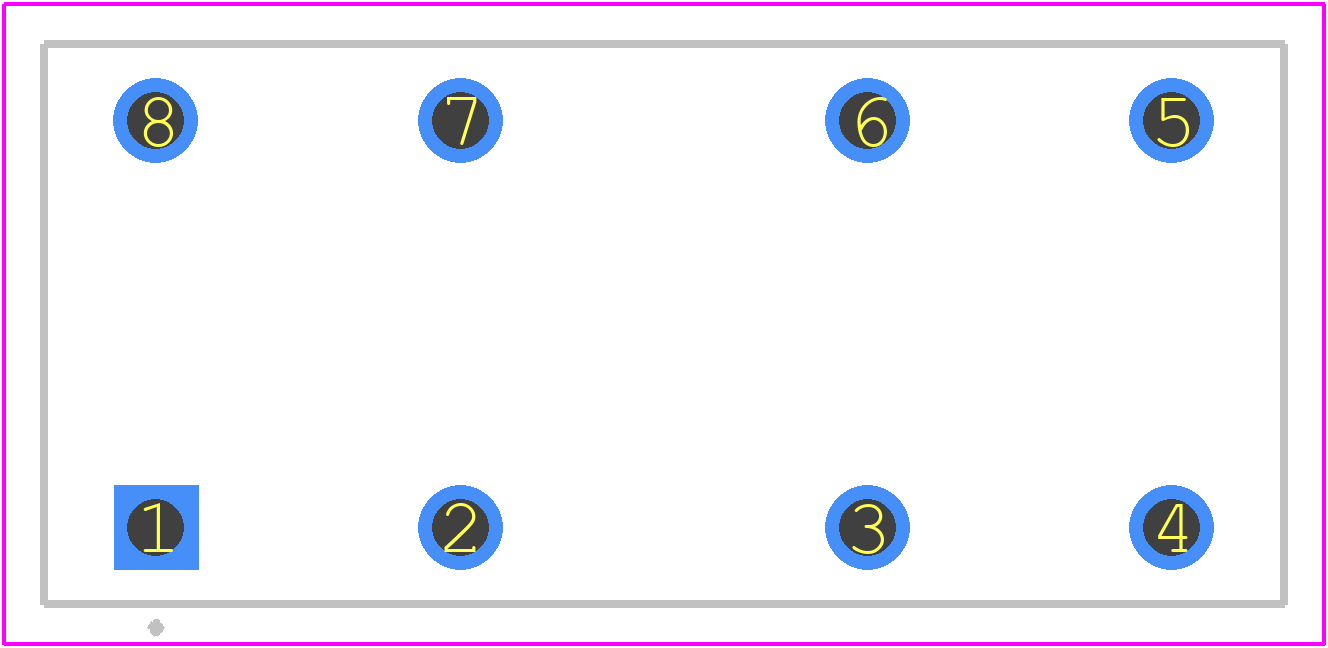

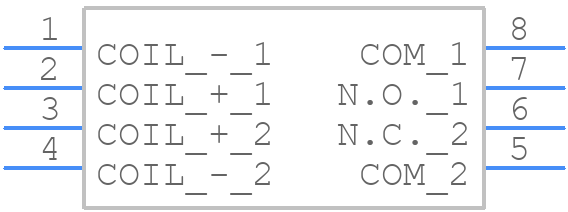

Use the download button to access the ST1-L2-DC3V-F schematic symbol, PCB footprint, and 3D model.
