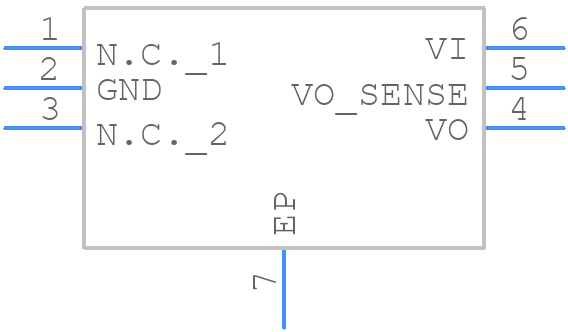

ST1L02PU18R - STMicroelectronics

ST1L02PU18R Details

• Manufacturer Part Number:

  ST1L02PU18R

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DFN

• Package Description:

  3 X 3 MM, ROHS COMPLIANT, DFN-6

• Pin Count:

  6

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  1.6 V

• Dropout Voltage1-Nom:

  1.6 V

• Input Voltage Absolute-Max:

  10 V

• Input Voltage-Max:

  7 V

• Input Voltage-Min:

  4.5 V

• JESD-30 Code:

  S-PDSO-N6

• Length:

  3 mm

• Line Regulation-Max:

  0.015%

• Load Regulation-Max:

  0.01%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  125 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  1.854 V

• Output Voltage1-Min:

  1.746 V

• Output Voltage1-Nom:

  1.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.13,38

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  3%

• Width:

  3 mm
