ST1PS01DJR - STMicroelectronics

Description: 400 mA nano-quiescent synchronous step-down converter with digital voltage selection and Power Good

Download ST1PS01DJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

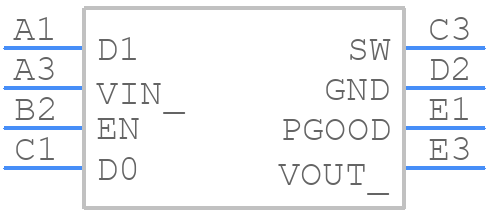

Symbol
ST1PS01DJR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST1PS01DJR - STMicroelectronics PCB footprint - Other - Other - ST1PS01DJR-2
click to zoom
3D Models
ST1PS01DJR - STMicroelectronics - 3D model - Other - ST1PS01DJR-2
click to zoom

ST1PS01DJR Details

  • Manufacturer Part Number:

    ST1PS01DJR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FLIPCHIP-8

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-11-05

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    PFM CONTROL TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B8

  • Length:

    1.41 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Output Voltage-Max:

    1.827 V

  • Output Voltage-Min:

    1.773 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,3X5,25/20/16/12/10

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    1.11 mm

ST1PS01DJR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5275, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ST1PS01DJR has a thermal pad on the bottom, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and avoid blocking the thermal pad with components or vias.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • The ST1PS01DJR has a low-power mode that can be enabled by pulling the EN pin low. Additionally, the device can be configured for low-power mode by setting the appropriate bits in the control register. Refer to the datasheet and application notes for detailed information on low-power mode configuration.
  • The recommended capacitor value for the output filter depends on the specific application and output voltage. A general guideline is to use a capacitor with a value between 1uF and 10uF, with a voltage rating that matches the output voltage. Refer to the application notes and datasheet for more information on output filter design.
