ST1PS03AQTR - STMicroelectronics

Description: 400 mA nano-quiescent synchronous step-down converter with digital voltage selection, Power Good and load switch

Download ST1PS03AQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

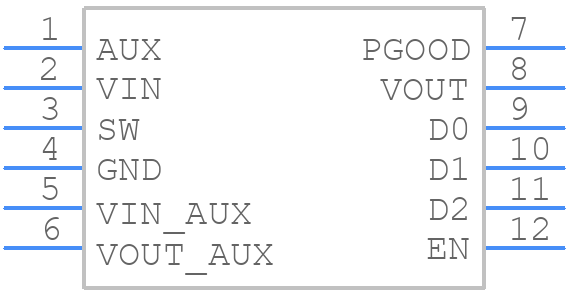

ST1PS03AQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST1PS03AQTR - STMicroelectronics PCB footprint - Other - Other - ST1PS03AQTR
click to zoom
3D Models
ST1PS03AQTR - STMicroelectronics - 3D model - Other - ST1PS03AQTR
click to zoom

ST1PS03AQTR Details

  • Manufacturer Part Number:

    ST1PS03AQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-12

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    1.6 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.06X.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    PMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.7 mm

ST1PS03AQTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output current, and ripple requirements. A general guideline is to use a low-ESR capacitor with a value between 1-10uF, and a voltage rating at least 1.5 times the input voltage. Consult the datasheet and application notes for more specific guidance.
  • The maximum output current is dependent on the input voltage, ambient temperature, and PCB layout. While the datasheet specifies a maximum output current of 3A, it's essential to perform thermal calculations and consider derating factors to ensure reliable operation.
  • The ST1PS03AQTR is rated for operation up to 125°C, but it's crucial to consider the junction temperature, thermal resistance, and power dissipation when operating in high-temperature environments. Consult the datasheet and application notes for guidance on thermal management.
  • To ensure stability, follow the recommended PCB layout, use a suitable input capacitor, and add a 10nF-100nF ceramic capacitor between the output and ground pins. Additionally, consult the datasheet and application notes for guidance on output capacitor selection and stability analysis.
