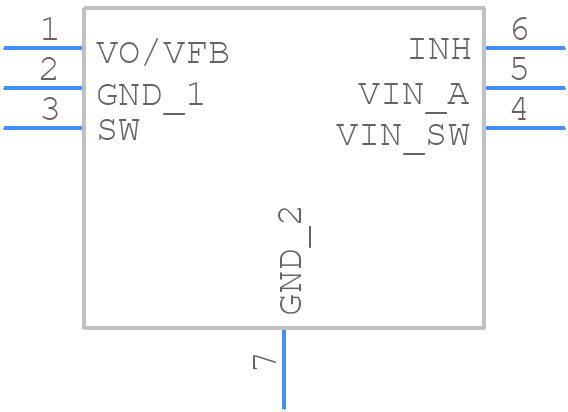

ST1S06PU12R - STMicroelectronics

ST1S06PU12R Details

• Manufacturer Part Number:

  ST1S06PU12R

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DFN

• Package Description:

  3 X 3 MM, ROHS COMPLIANT, DFN-6

• Pin Count:

  6

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  7.3

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  4.2 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  S-XDSO-N6

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -30 °C

• Output Current-Max:

  1.5 A

• Output Voltage-Max:

  1.224 V

• Output Voltage-Min:

  1.176 V

• Output Voltage-Nom:

  1.2 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.11,37

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  1800 kHz

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
