ST2-L2-DC12V-F - Panasonic

Description: 1 Form A 1 Form B/2 Form A, 8 A, Polarized power relays

Download ST2-L2-DC12V-F Model

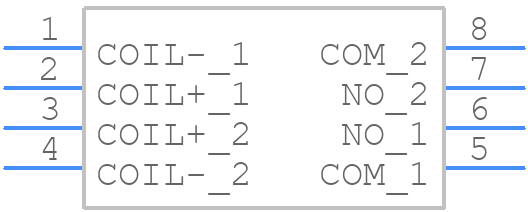

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

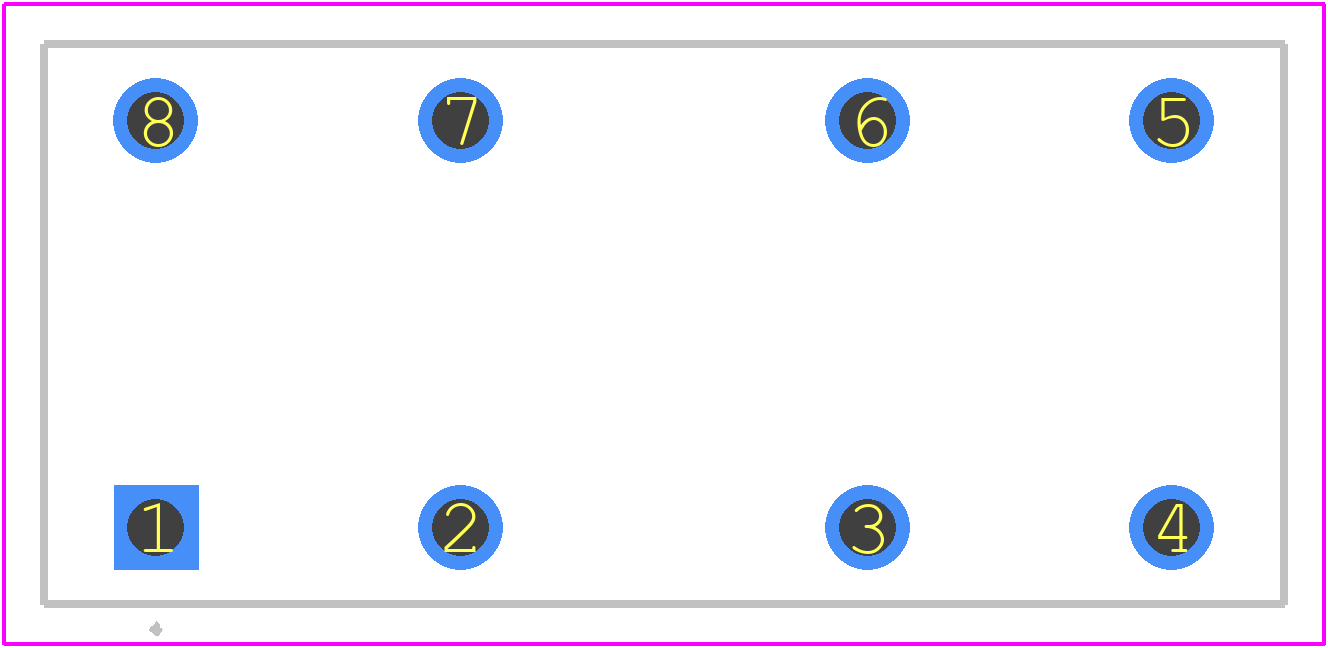

PCB Footprints
ST2-L2-DC12V-F - Panasonic PCB footprint - Other - Other - ST2-L2-DC12V-F-1
click to zoom
3D Models
ST2-L2-DC12V-F - Panasonic  - 3D model - Other - ST2-L2-DC12V-F-1
click to zoom

ST2-L2-DC12V-F Details

  • Manufacturer Part Number:

    ST2-L2-DC12V-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Body Breadth:

    14 mm

  • Body Height:

    11.3 mm

  • Body Length or Diameter:

    31 mm

  • Coil Current(DC)-Max:

    0.019 A

  • Coil Operate Voltage(DC):

    9.6 V

  • Coil Power:

    240 mW

  • Coil Release Voltage(DC):

    9.6 V

  • Coil Resistance:

    640 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil Voltage-Nom:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Power Rating R Load:

    3040VA@380VAC

  • Contact (AC) Max Rating R Load:

    8A@380VAC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact (DC) Max Power Rating R Load:

    150W@250VDC

  • Contact (DC) Max Rating R Load:

    8A@250VDC

  • Contact Resistance:

    30 mΩ

  • Contact Voltage(AC)-Max:

    380 V

  • Contact Voltage(DC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    Silver Tin Oxide

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    8

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    31mm x 14mm x 11.3mm

  • Reference Standard:

    CSA; SEV; UL; VDE

  • Relay Action:

    LATCHED

  • Relay Form:

    2 FORM A

  • Relay Function:

    DPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Terminal Length:

    0.003500127000254001 inch

  • Termination Type:

    SOLDER
