Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
While the ST2-L2-DC24V-F is a robust relay module, it's essential to evaluate its performance in your specific application. Panasonic may provide additional information on vibration and shock testing in their reliability reports or application notes. You may also need to consider additional mechanical support or fixation to ensure the relay's reliability in harsh environments.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal loop areas, and using shielding or filtering components as needed. Additionally, consider the relay's emissions and immunity characteristics, as specified in the datasheet, and design your system to meet relevant EMC standards.
While the datasheet provides some information on temperature derating, it's essential to consult Panasonic's application notes or reliability reports for more detailed information. As a general rule, it's recommended to derate the relay's electrical characteristics by 1-2% per degree Celsius above the rated temperature range to ensure reliable operation.
The ST2-L2-DC24V-F is a general-purpose relay module, and its use in safety-critical or life-critical applications may require additional evaluation and certification. Consult Panasonic's documentation and relevant industry standards (e.g., IEC 61508, ISO 26262) to determine the relay's suitability for your specific application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ST2-L2-DC24V-F Overview

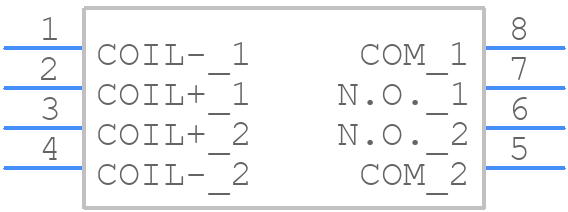

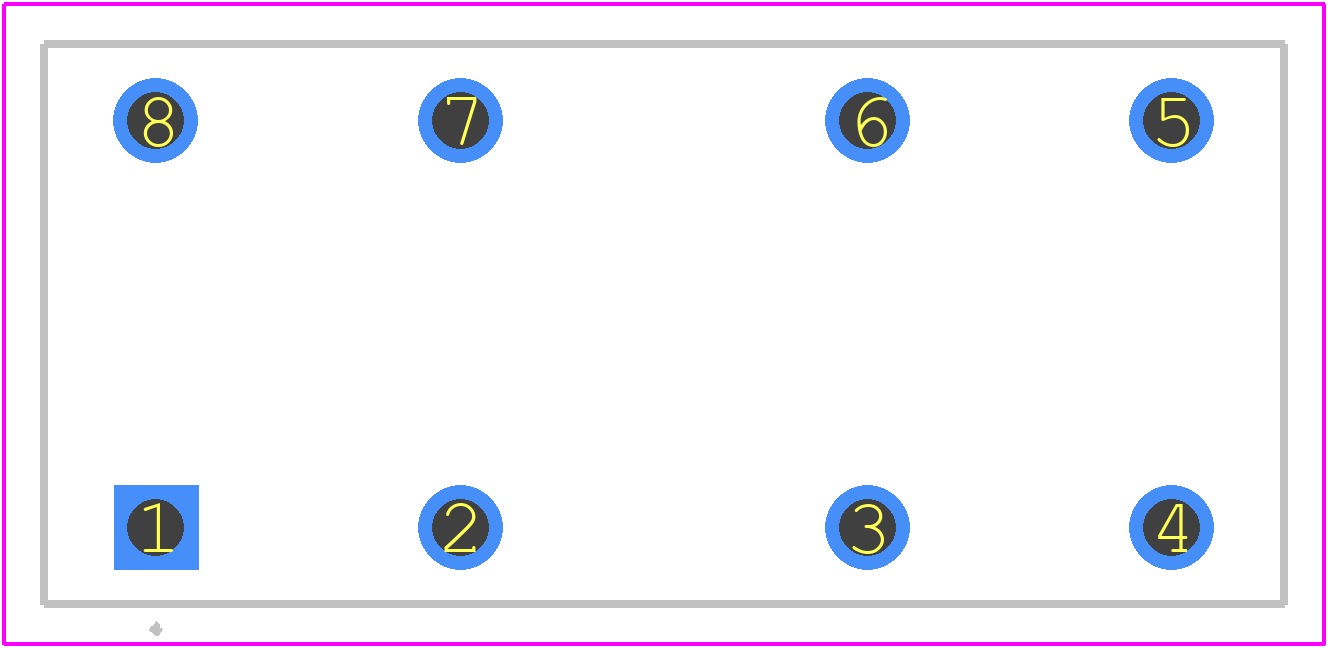

Use the download button to access the ST2-L2-DC24V-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST2-L,
or try a keyword search, such as Power/Signal Relays
