ST205C107MAN10 - Kyocera AVX

Description: 100 µF ±20% 50V Ceramic Capacitor X7R Stacked DIP, 20 Lead,-55°C ~ 125°C

Download ST205C107MAN10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ST205C107MAN10 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

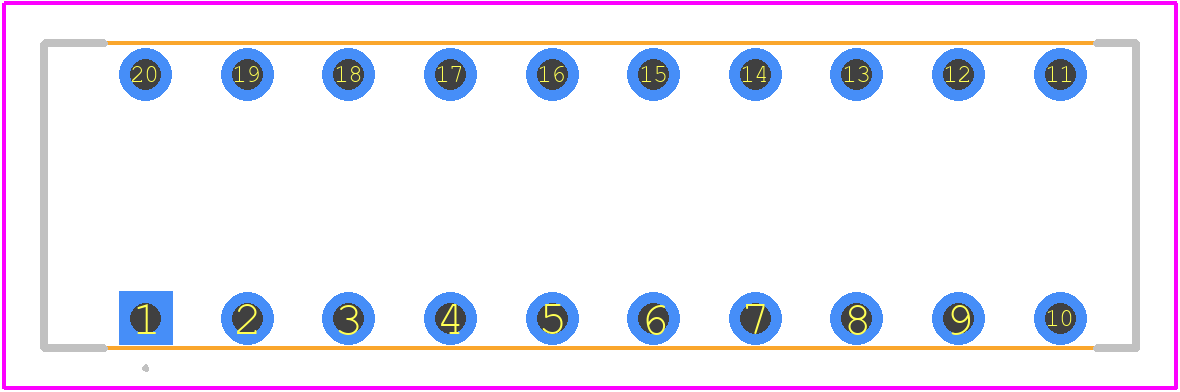

ST205C107MAN10 - Kyocera AVX PCB footprint - Other - Other - Stacked DIP, 20 Lead
click to zoom
3D Models
ST205C107MAN10 - Kyocera AVX - 3D model - Other - Stacked DIP, 20 Lead
click to zoom

ST205C107MAN10 Details

  • Manufacturer Part Number:

    ST205C107MAN10

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    34 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    4

  • Capacitance:

    100 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    5.59 mm

  • Length:

    27.3 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    20%

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Shape:

    FLAT

  • Width:

    7.62 mm

ST205C107MAN10 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the ST205C107MAN10 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the ST205C107MAN10 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The maximum operating voltage for the ST205C107MAN10 is 50V DC.
  • Yes, the ST205C107MAN10 is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • No, the ST205C107MAN10 is a non-polarized capacitor, meaning it can be used in AC or DC circuits without worrying about polarity.
